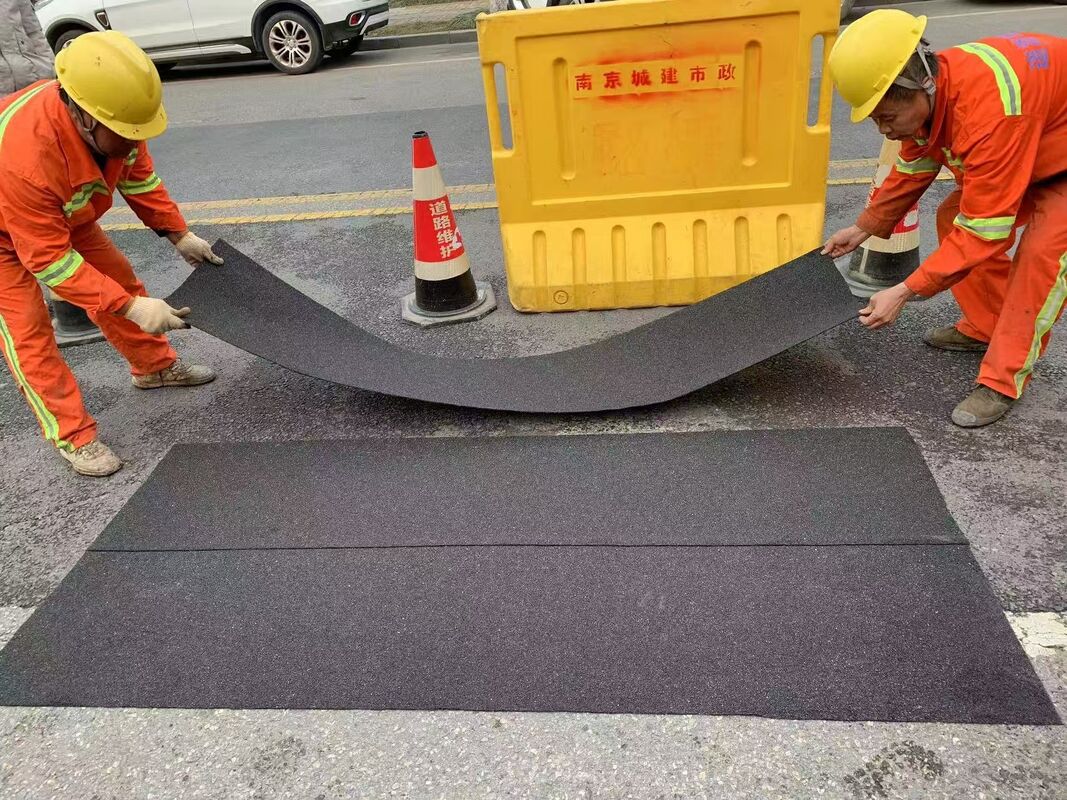

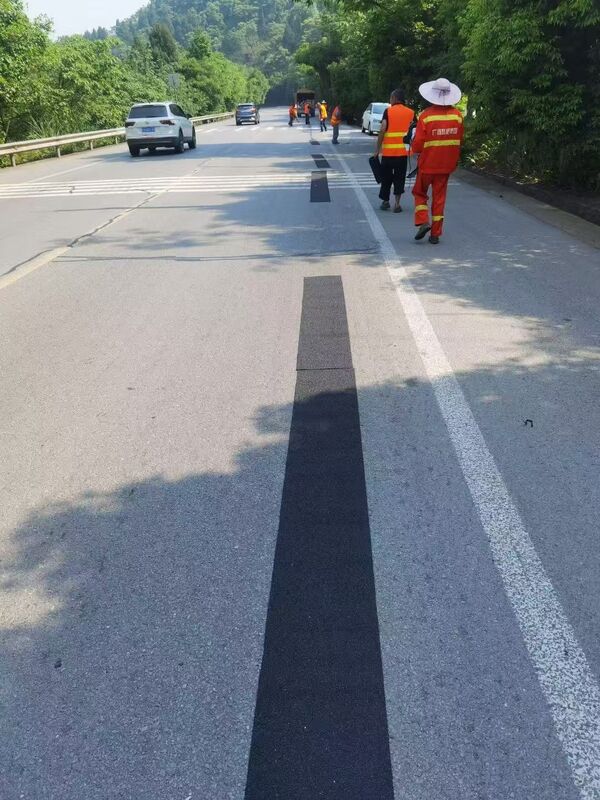

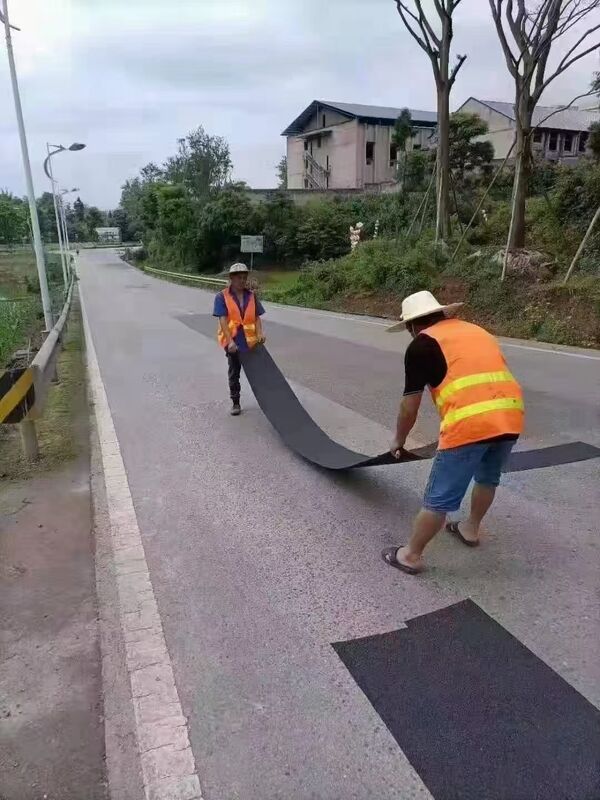

Self‑adhesive Mesh Crack Patch is used for asphalt & concrete pavement crack repair. Select matching size according to crack width. Thoroughly clean the crack surface, remove dirt, oil stains and loose gravel. Peel off the release film, lay the patch flat over cracks. Install when surface temperature above 15℃; apply adhesive or heat pavement for low‑temperature construction. Cut to fit irregular cracks. Compact tightly to eliminate air bubbles and wrinkles for full adhesion.
| Performance Indicator | Standard type Requirement | Low temperature type Requirement | Cold climate type Requirement | Severe cold type Requirement |
| Maximum Tensile Force (N/50mm) | 500~1200 | 500~1200 | 500~1200 | 500~1200 |
| Elongation at Maximum Load (%) | 1.0~10.0 | 1.0~10.0 | 1.0~10.0 | 1.0~10.0 |
| Low temperature Flexibility (Φ30 mm) | No crack at −10℃ | No crack at −20℃ | No crack at −30℃ | No crack at −40℃ |
| Low temperature Tensile Elongation (mm) | ≥5 | ≥5 | ≥5 | ≥5 |
| Heat Resistance (℃) | ≥90 | ≥80 | ≥80 | ≥75 |
| Additional Heat resistant Requirement | No flowing or dripping; sliding distance ≤2 mm | No flowing or dripping; sliding distance ≤2 mm | No flowing or dripping; sliding distance ≤2 mm | No flowing or dripping; sliding distance ≤2 mm |
| Water impermeability (30 min, 0.3 MPa) | Waterproof | Waterproof | Waterproof | Waterproof |
| Bonding Strength (MPa) | ≥0.2 | ≥0.2 | ≥0.2 | ≥0.2 |
| Static Load Resistance (Method B) | 20 kg load, zero leakage | 20 kg load, zero leakage | 20 kg load, zero leakage | 20 kg load, zero leakage |
| Skid Resistance Friction Coefficient (bpn) | ≥45 | ≥45 | ≥45 | ≥45 |
| Skid Resistance Texture Depth (mm) | ≥0.2 | ≥0.2 | ≥0.2 | ≥0.2 |
| Embedding Depth of Particles into Modified asphalt (mm) | Embedding depth ≥ 2/3 of particle diameter | Embedding depth ≥ 2/3 of particle diameter | Embedding depth ≥ 2/3 of particle diameter | Embedding depth ≥ 2/3 of particle diameter |
