Place of Origin:
China
Brand Name:
SEM
Model Number:
SEM655D
Contact Us

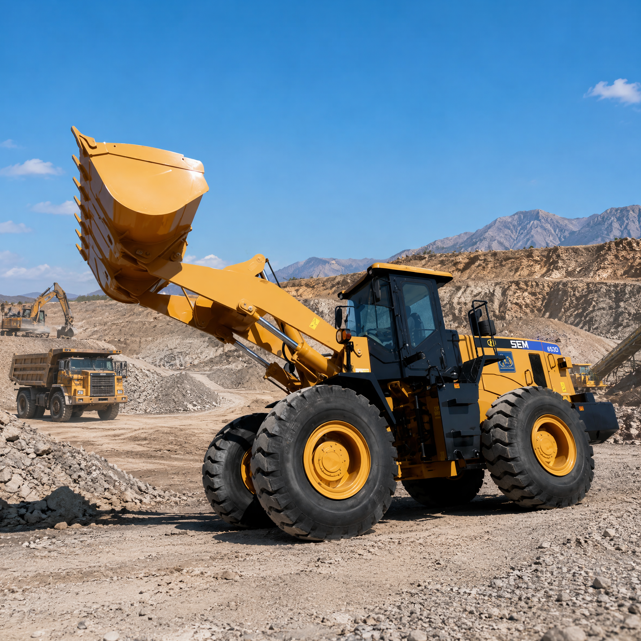

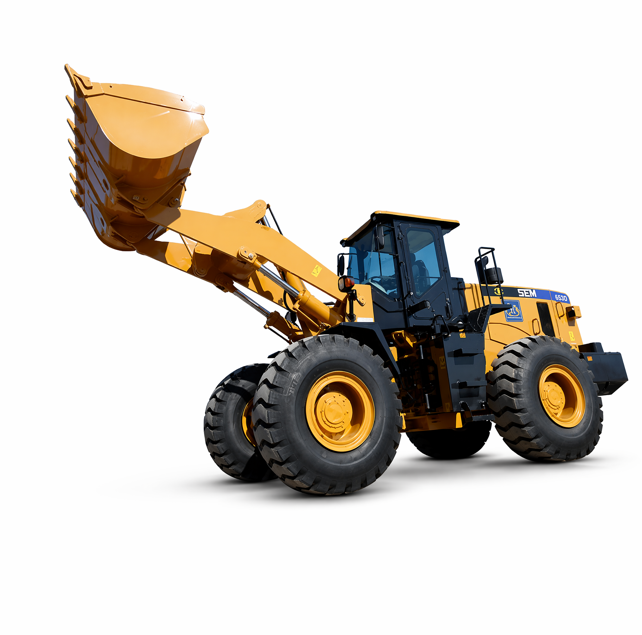

This SEM655D wheel‑loader adopts human‑oriented safe configurations including three‑point boarding structure and backup warning alarm. It applies eco‑friendly paint and meets official‑safety‑related‑standards. The side‑open large‑angle engine hood, independent‑installed torque converter and reserved hydraulic pressure‑testing ports greatly simplify daily inspection and maintenance work.
SEM655D |
|
| Size | 23.5-25 |
| Breakout Force | 168kN |
| Service Brake | Dry & caliper, air to oil control |
| Fuel Tank | 260L |
| Engine Model | Weichai WD10G |
| Implement System Type | Twin pump flow merging hydraulic system |
| Rated Power | 162kW |
| Rated Payload | 5,000kg |
| Parking Brake | Drum type shoe brake, spring applied & oil released |
| Engine Lubricating Oil | 21L |
| Type | Bias |
| Transmission Gears | F4/R4 |
| Operating Weight with Standard Bucket | 16,800kg |
| Torque Converter Type | Sigle stage 3 elements |
| Hydraulic Cycle Time | 9.5s |
| Rated Speed | 2,000r/min |
| Layer | 16 |
| System Pressure Setting | 17Mpa |
| Hydraulic System | 165L |
| Displacement | 9.726L |
| Rear- oscillation +/- | ±11° |
| Raise | 5.13s |
| Transmission Oil | 53L |
| Bucket Capacity | 2.7-4.5m³ |
| Maker & Type | SEM TR200 |
