Place of Origin:
China
Brand Name:
XCMG
Model Number:
XM1005H
Contact Us

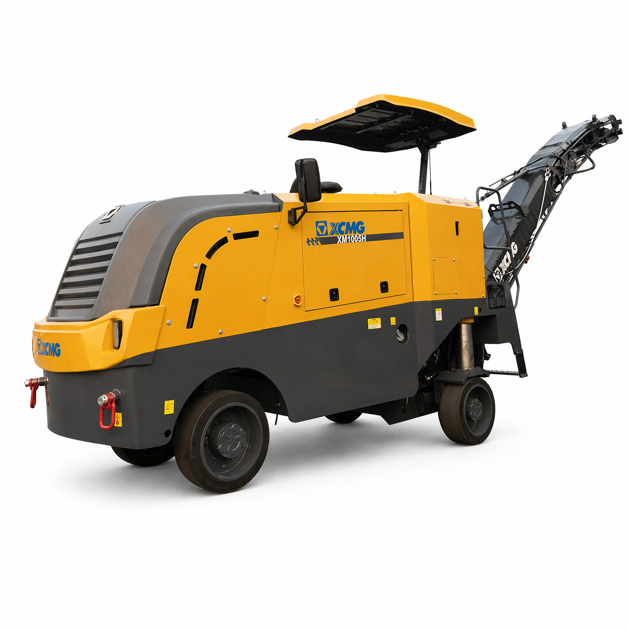

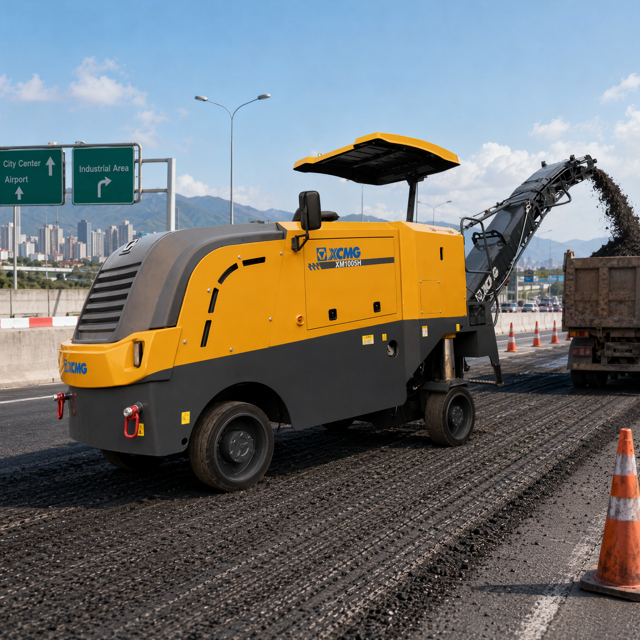

XM1005H milling machine is a kind of high-performanceone-meter milling machine,mainly used for excavation andrenovation of asphalt concrete pavements of highways, urbanroads, airports, freight yards,parking lots,etc.It can efficient-ly remove road congestion,waves,mesh patterns, ruts,etc.; excavate the pavement pits and trenches;roughen thecement pavement and mill the surface faulting.
This machine has high work efficiency,high level of intelli-gence,long working cycle,and good maneuverability,reliabil-ity and maintenance,and the overall technical performancehas reached the international advanced level.

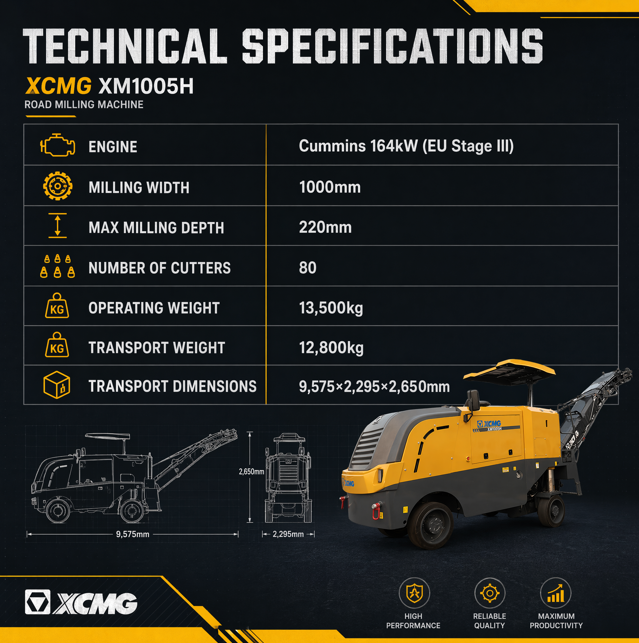

| Item | Unit | Parameter |
| Engine | - | - |
| Rated Power | kW | 164 |
| Emission | - | EU Stage Ⅲ |
| Weight in transportation state | kg | 12800 |
| Weight in work state | kg | 13500 |

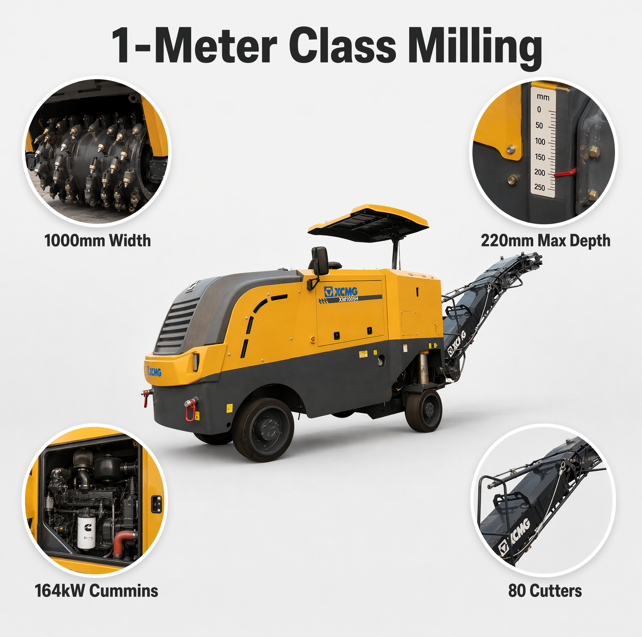

| Milling width | mm | 1000 |
| Max.Milling Depth | mm | 220 |
| Number of cutters | - | 80 |
| Transport Dimensions / L x W x H | mm | 9575 x 2295 x 2650 |
