Place of Origin:
China
Brand Name:
XCMG
Model Number:
XM505
Contact Us
XM505 pavement milling machine is a maintenance and construc-tion machine for asphalt pavement,and it is mainly used for mu-nicipal highway maintenance and can be used as an auxiliary ma-chine for large milling machine construction.Its functions arelisted as follows:small area excavation and renovation of asphaltconcrete pavement such as highways,urban roads,airports,freight yards and parking lots;Removal of upheavals,oil waves,reticulated lines,ruts,etc;Roughening of cement pavement andmilling of staggered surface;edge milling and planing along thewell cover.If a hydraulic pick is selected,it can realize the functionof pavement breaking;The rumble wheel can be optionally in-stalled for roadside rumble strip milling and planing.

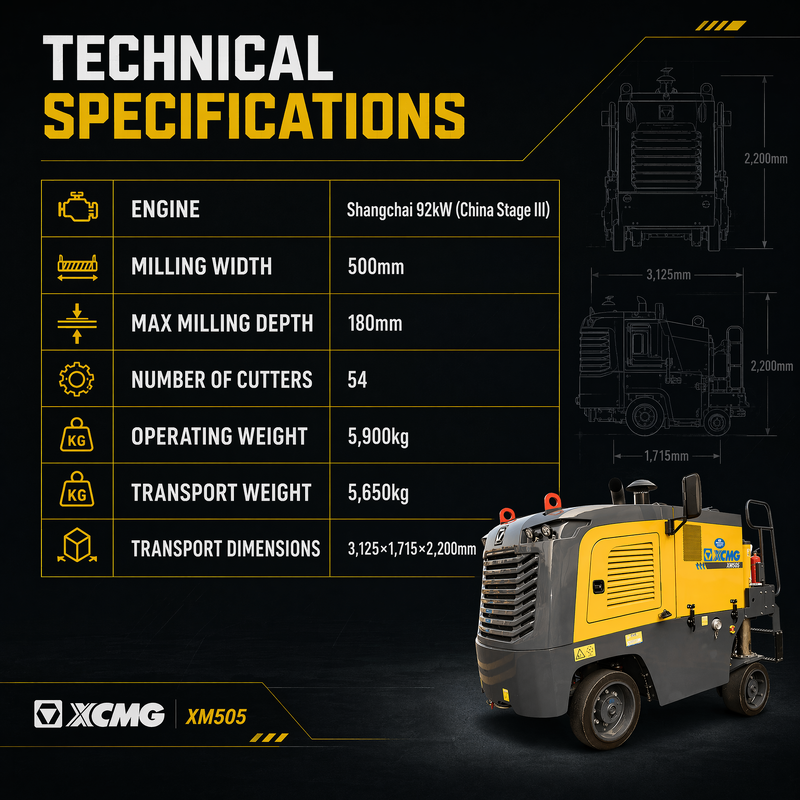

| Item | Unit | Parameter |
| Engine | - | Shangchai |
| Rated Power | kW | 92 |
| Emission | - | China Stage Ⅲ |
| Weight in transportation state | kg | 5650 |
| Weight in work state | kg | 5900 |
| Milling width | mm | 500 |
| Max.Milling Depth | mm | 180 |
| Number of cutters | - | 54 |
| Transport Dimensions / L x W x H | mm | 3,125 x 1,715 x 2,200 |
