Place of Origin:
China
Brand Name:
XCMG
Model Number:
XS225H
Contact Us

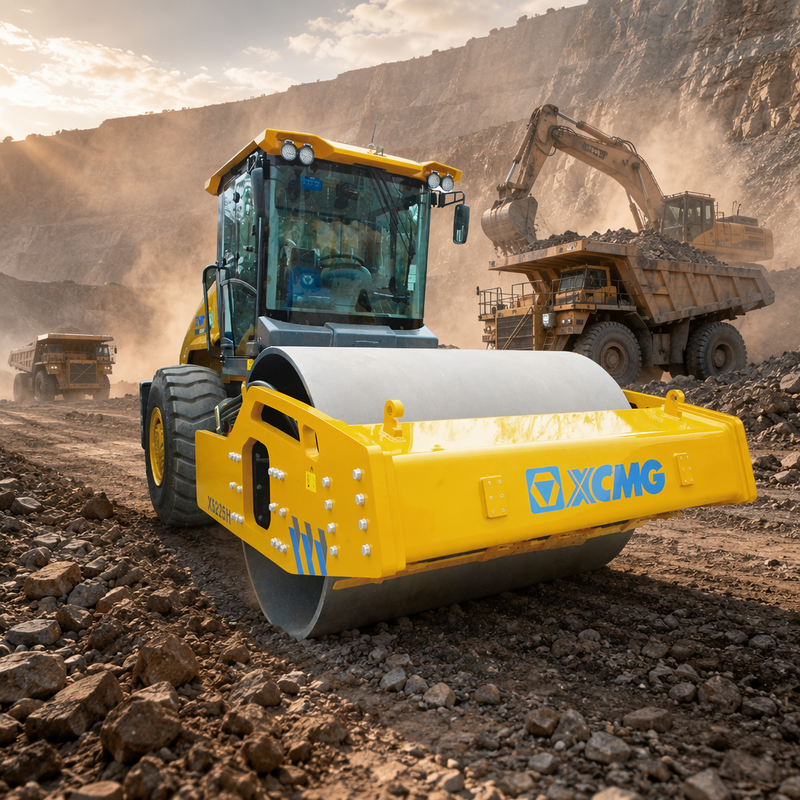

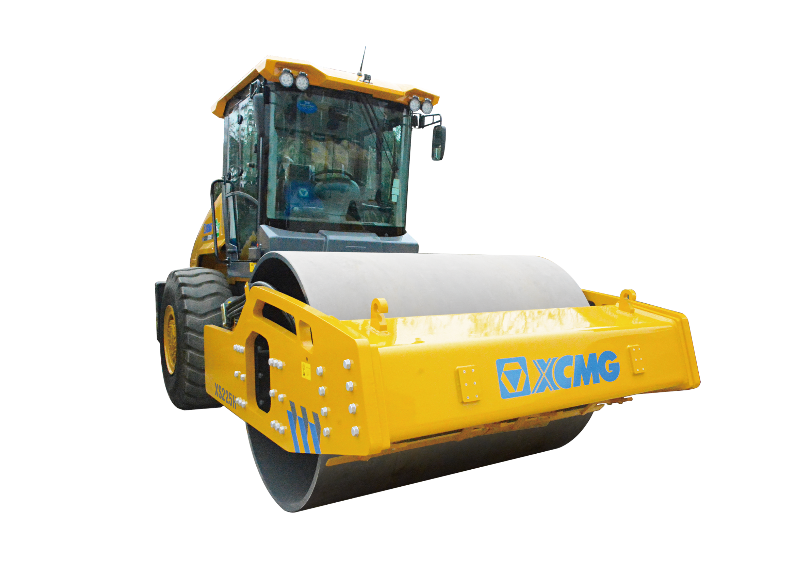

XS225H vibratory roller is a highly efficient and en-ergy-saving super heavy machinery driven single drum vibratory roller independently developed by XCMG Construction Machinery Co., Ltd. This is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, as well as the compaction of concrete and stabilized soil base materials in various large proj-ects. It is the ideal compaction equipment for the construction of high-grade highways, airports, harbors, dams and industrial construction sites.
| Item | Unit | Parameter |
| Engine | - | Shangchai |
| Rated power | kW | 147 |
| Rated speed | r/min | 2200 |
| Emission | - | Stage Ⅲ |
| Operating Weight | kg | 22000 |
| Working width | mm | 2130 |
| Dimensions | mm | 7,000 x 2,470 x 3,260 |
| Working speed | km/h | 0-5/0-8 |
| Gradeability | % | 44 |
| Vibration frequency | Hz | 28/33 |
