Place of Origin:
China
Brand Name:
Shantui
Model Number:
WBZ600-3B
Contact Us

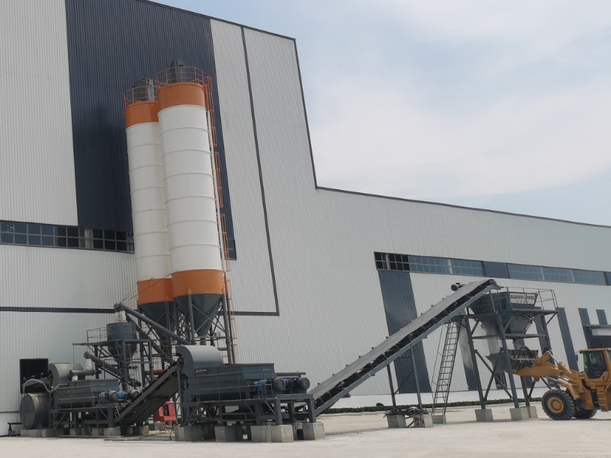

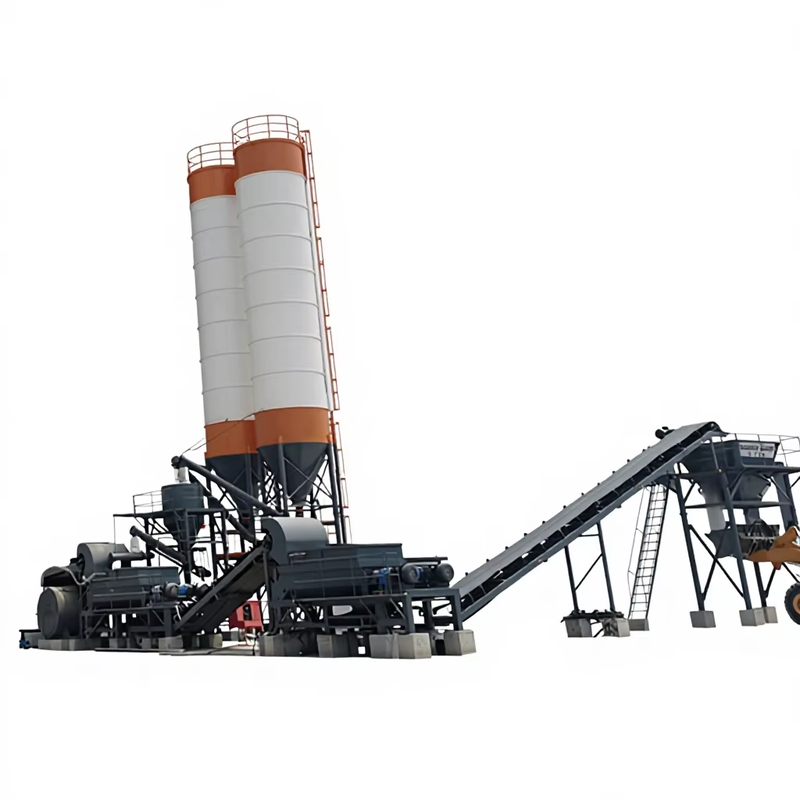

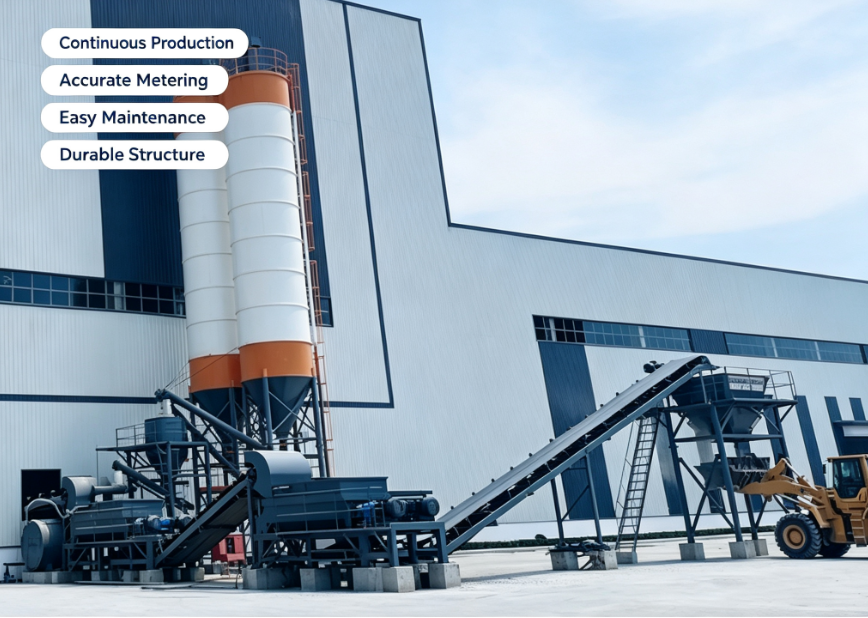

Compact modular structure for fast installation & flexible moving. Liner-free mixing unit for low maintenance cost. High accurate batching via electronic weighing + secondary powder metering. Central intelligent control system ensures stable proportion and high working efficiency for highway base construction.
| Model | WBZ600-3B |
| Rated Productivity (t/h) | 600 |
| Mixing host | 2X37 |
| Stirring power (kW) | —— |
| Aggregate particle size (mm) | ≤50 |
| Aggregate bin volume (m³) | 5X12 |
| Belt conveyor capacity (t/h) | 600 |
| aggregate | ±2% |
| cement | ±1% |
| water | ±1% |
| Total power (kW) | 157 |
| Discharge height (m) | 3.6 |
