Place of Origin:
China
Brand Name:
Shantui
Model Number:
C610
Contact Us

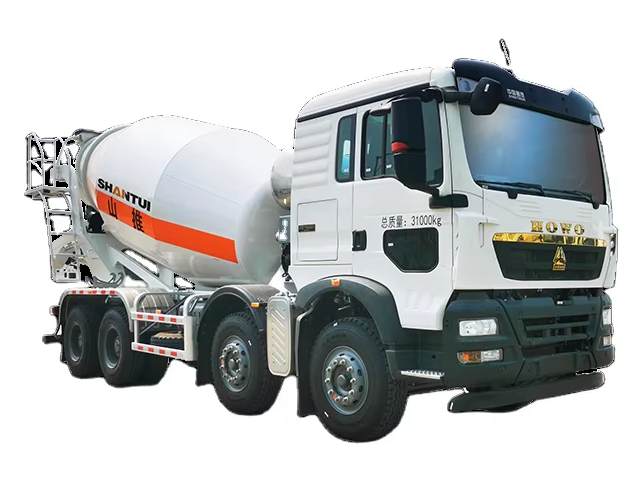

Engineered for high productivity and low operating costs, the C610 concrete mixer truck combines a robust 8x4 Sinotruk HOWO TX chassis with a high-strength steel mixing drum. The frame is optimized via Finite Element Analysis (FEA) to eliminate stress concentration, while the feeding and discharge hoppers are made of BW300TP/B520JJ wear-resistant steel with one-piece forming, ensuring a lightweight yet ultra-durable body. Powered by a reliable Weichai/MAN technology engine with a B10 life of 1.5 million km, it delivers a 10% increase in average speed and over 10% fuel savings compared to competitors. Operator safety and comfort are prioritized with the original MAN T5G cab, meeting ECE R29 collision standards, featuring a 0.56 low drag coefficient, four-point suspension, airbag seats, and a 750mm lower bunk. Performance highlights include a fast feed rate of 5.2 m³/min, a residual discharge rate of less than 0.6%, and a 350L–400L water tank (500L optional). Equipped with internationally branded hydraulic pumps, motors, and reducers, plus dual control modes (flexible shaft and mechanical operation from the cab or both sides), the C610 guarantees efficient, clean, and reliable concrete delivery for construction, roadwork, and infrastructure projects.
| Comparison items | C610 |

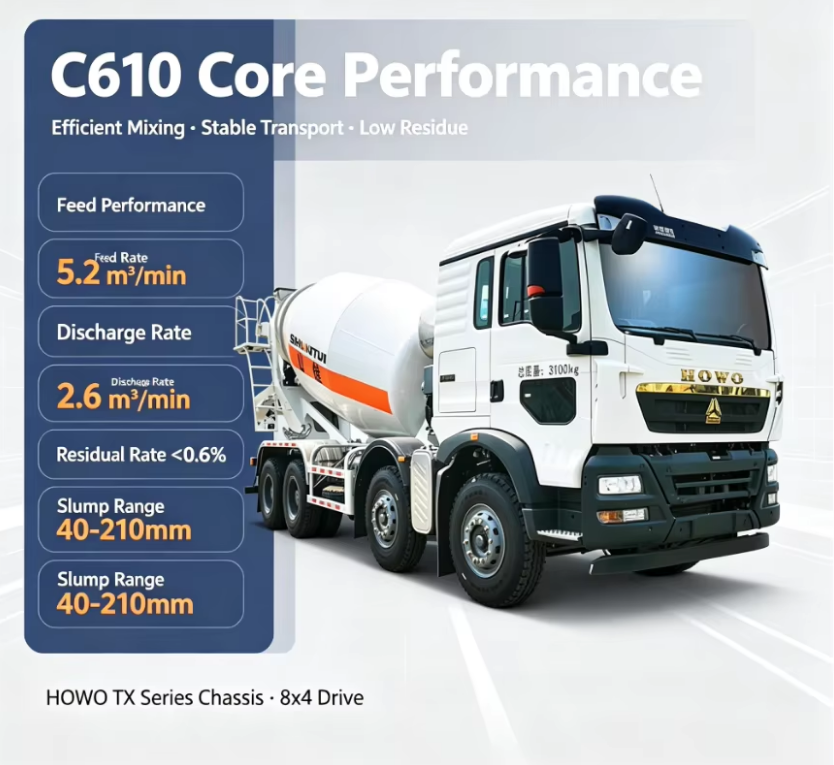

| Mixer performance | |
| Feed rate (m³/min) | 5.2 |
| Discharge rate (m³/min) | 2.6 |
| Residual discharge rate (%) | <0.6% |
| Slump range (mm) | 40-210 |
| Water supply type | |
| Water supply method | Pneumatic water supply |
| Water tank capacity (L) | 350L/400L, 500L available upon request |
| vehicle chassis | |
| Drive form | 8x4 |
| brand | Sinotruk HOWO TX series |

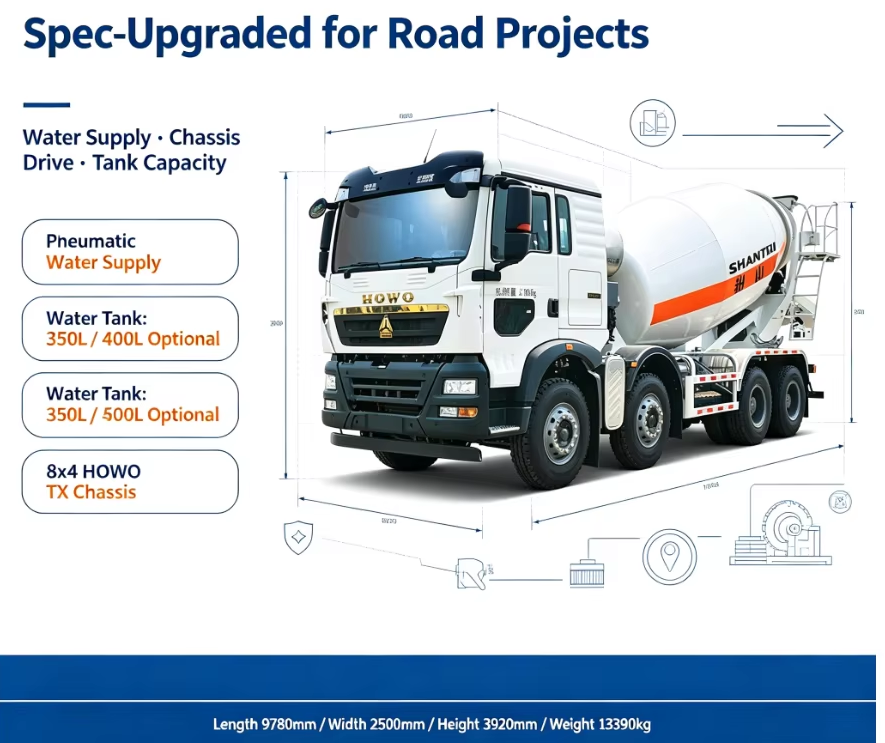

| Vehicle parameters | |
| Total length (mm) | 9780 |
| Total width (mm) | 2500 |
| Total height (mm) | 3920 |
| Vehicle weight (kg) | 13390 |
