Place of Origin:
China
Brand Name:
Shantui
Model Number:
HZS075-3Y
Contact Us

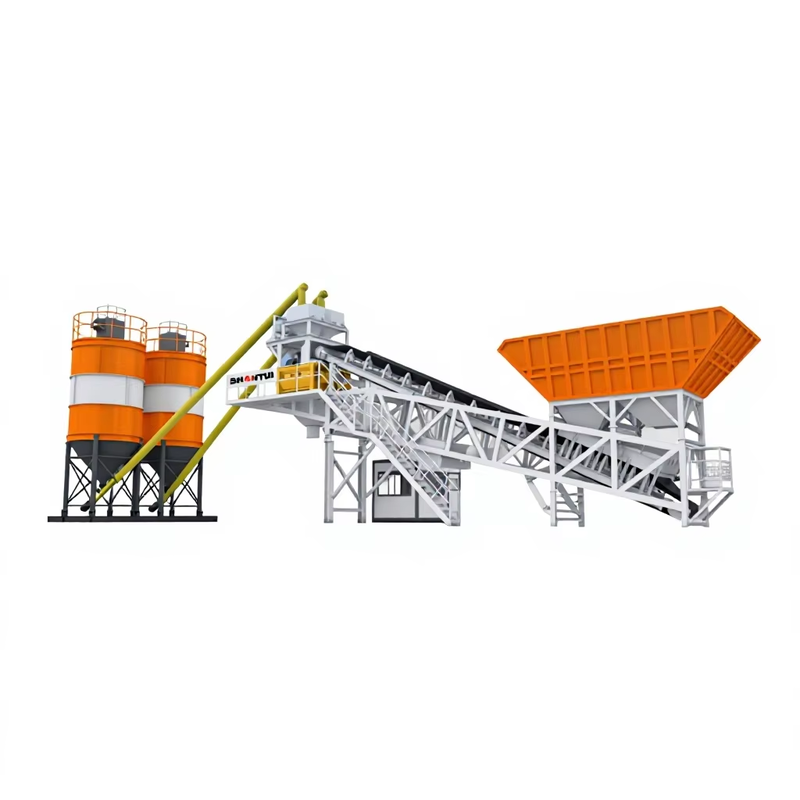

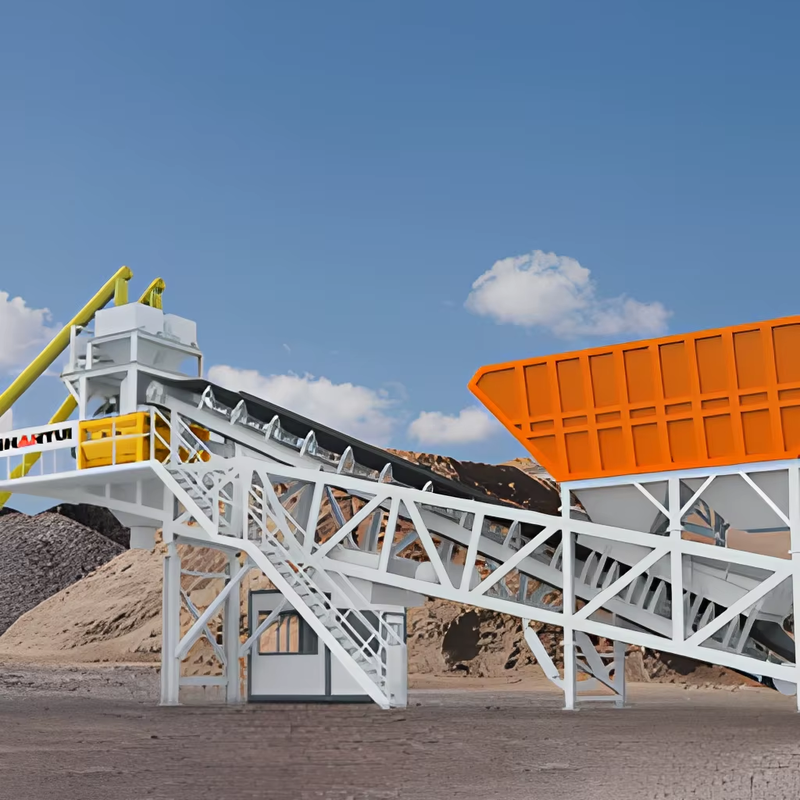

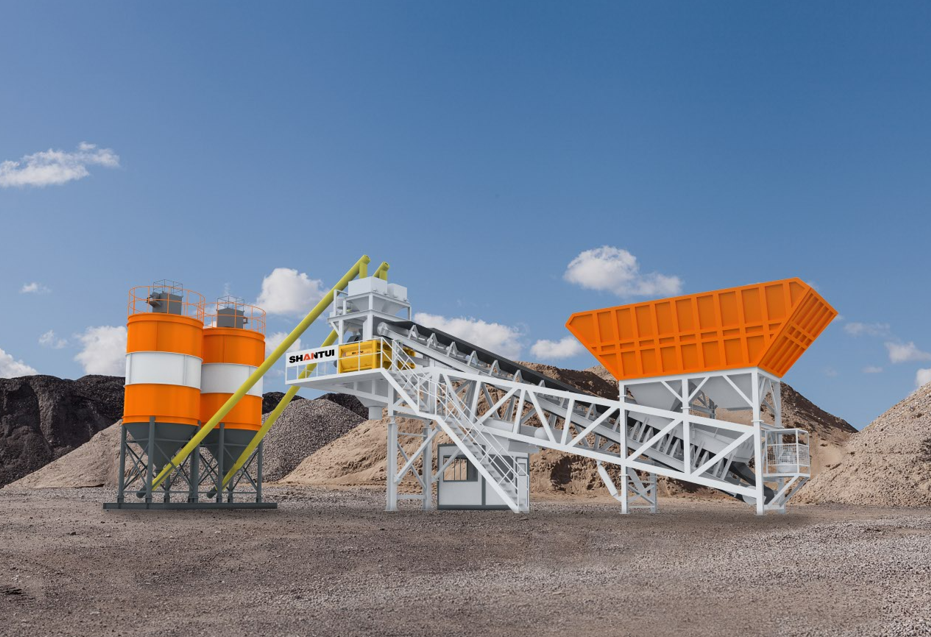

Boost your construction efficiency with the HZS075-3Y Concrete Batching Plant. Designed for medium-scale projects, this plant features a powerful JS1500-3B twin-shaft mixer and a theoretical productivity of 75m³/h. With a 4.0m discharge height and a robust 3000kg aggregate weighing system, it ensures seamless compatibility with concrete mixer trucks. Its modular design allows for quick installation and low maintenance costs.
| HZS075-3Y | |
| Theoretical productivity (m³/h) | 75 |
| Mixer host parameters | |
| model | JS1500-3B |
| Drive power (kW) | 2X30 |
| Discharge capacity (L) | 1500 |
| Maximum aggregate size (crushed stone/pebbles) mm | ≤60/80 |
| Ingredient storage | |
| Storage volume (m³) | 4X8 |
| Weighing range and measurement accuracy | |
| Aggregate (kg) | 3000±2% |
| Cement (kg) | 800±1% |
| Water (kg) | 300±1% |
| Additives (kg) | 30±1% |
| Discharge height (m) | 4.0 |
| Total power (kW) | 94 |
