Place of Origin:
China
Brand Name:
Jaenter
Model Number:
3QGB45-2-40
Contact Us
| Serial Number | name | quantity | unit | parameter | Remark | |
| one . | Asphalt system | |||||
| 1 | High-temperature asphalt box | 1 | tower | 20T |
It features an internal 57mm heat transfer oil heating coil with a heat exchange area of 70m². Rock wool insulation is provided . 100mm outer cladding composite board. |
|
| 2 | Asphalt transfer pump | 1 | tower | 3QGB45-2-40 |
5.5KW, insulated jacketed high viscosity pump, flow rate: 25 cubic meters, pressure: 0.6MPa, |
|
| 3 | Filter | 1 | tower | standard | ||
| two . | Heating system | |||||
| 1 | Cutting, preheating | 1 | set | 300,000 kcal | Indirect heating with heat transfer oil | |
| 2 | Rapid heating | 2 | set | 600,000 kcal | direct heating | |
| three . | Hydraulic tilting feeding system | |||||

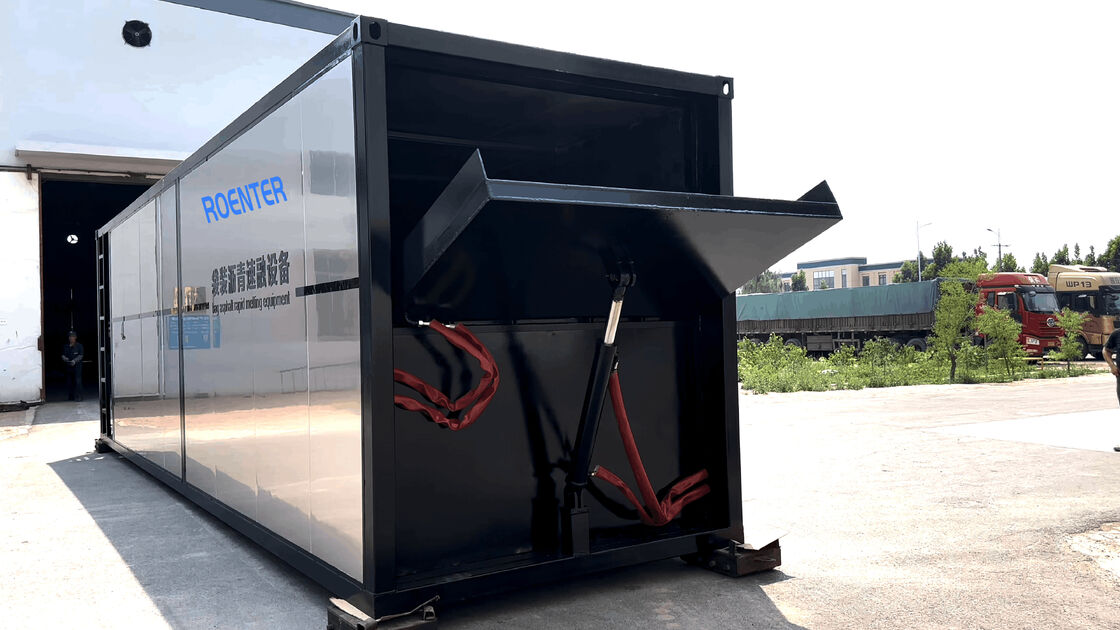

| 1 | Radiant Flip Feeder | 1 | tower | 1.4*2.1m | 6-ton hydraulic crane | |
| 2 | Hydraulic power system | 1 | tower | 3kw | Electromagnetic remote control | |
| Four . | Area awaiting integration | |||||
| 1. | Melting and cutting coils | 1 | tower | 15cm | 57 Heat Transfer Oil Heating Coil | |
| 2. | Box in the waiting area | 1 | tower | 25 cubic meters | ||
| five . | Stirring and dispersing system | |||||
| 1. | speed reducer | 1 | tower | MD10 | Motor power: 11KW, speed: 150 min | |
| 2. | Mixer | 1 | set | Assemblies | Horizontal coaxial mixer | |
| six . | frame | |||||
| 1. | frame | 1 | 11800*2200*2600 | 120*60 square tube base 120*120 square tube | ||
| 2. | color | Ash | ||||
| Total power | 25kw | |||||
