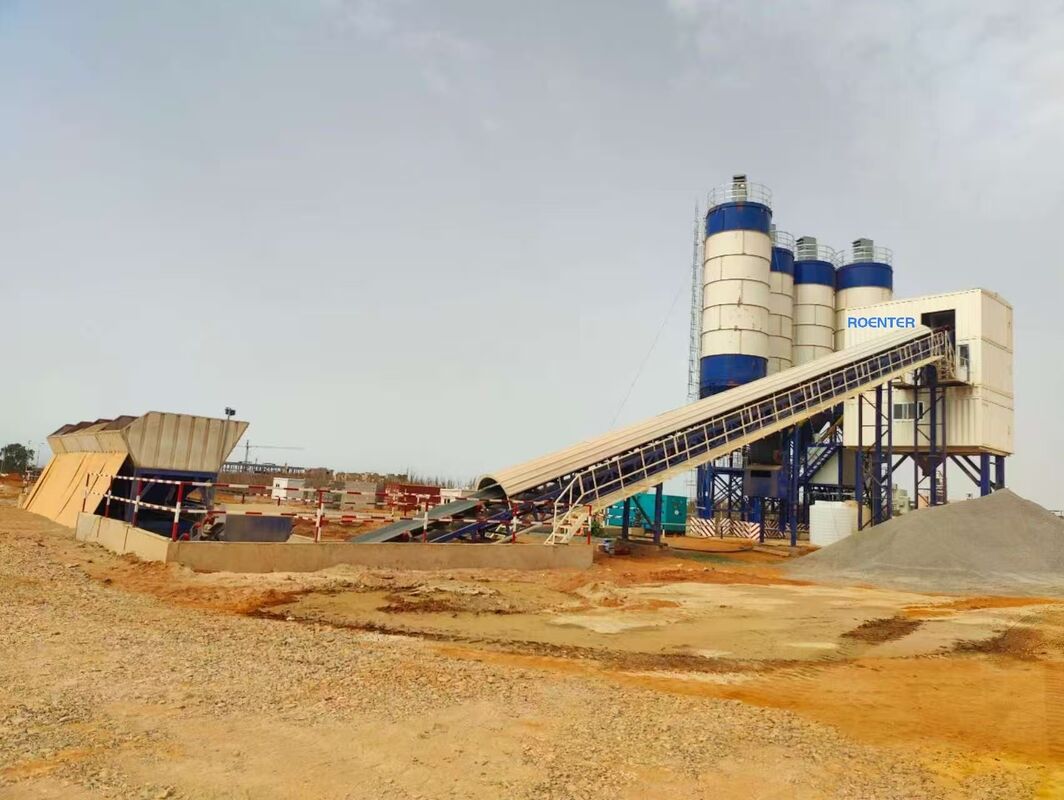

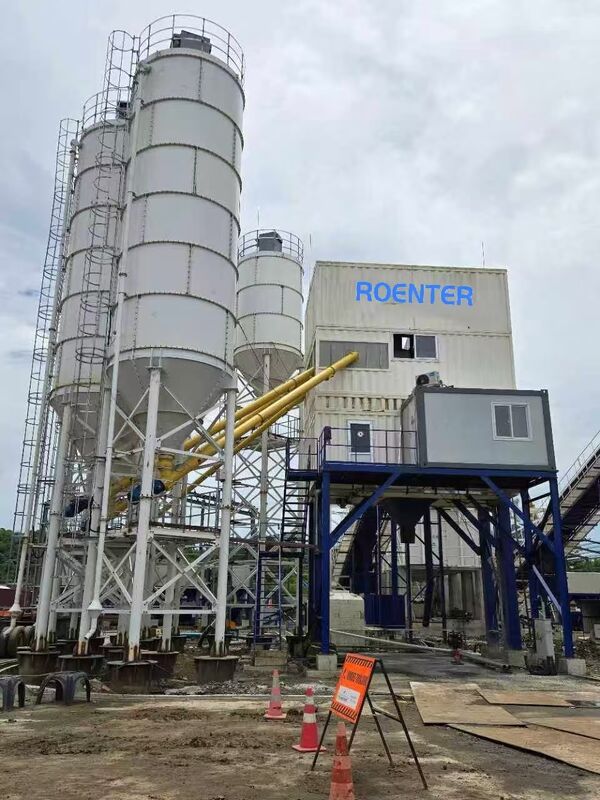

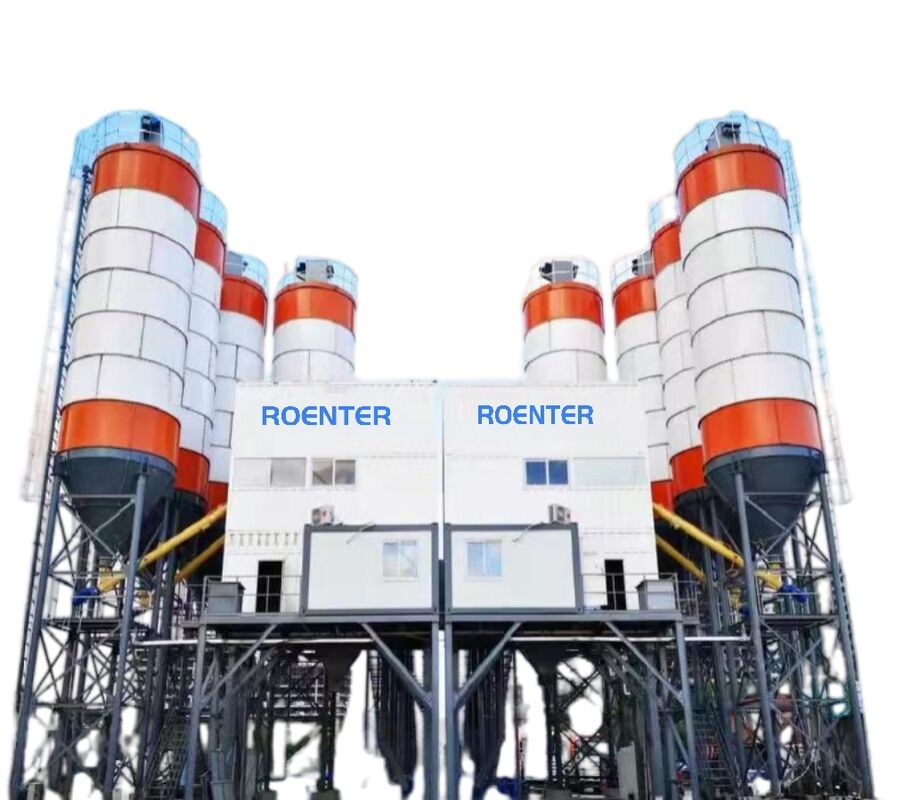

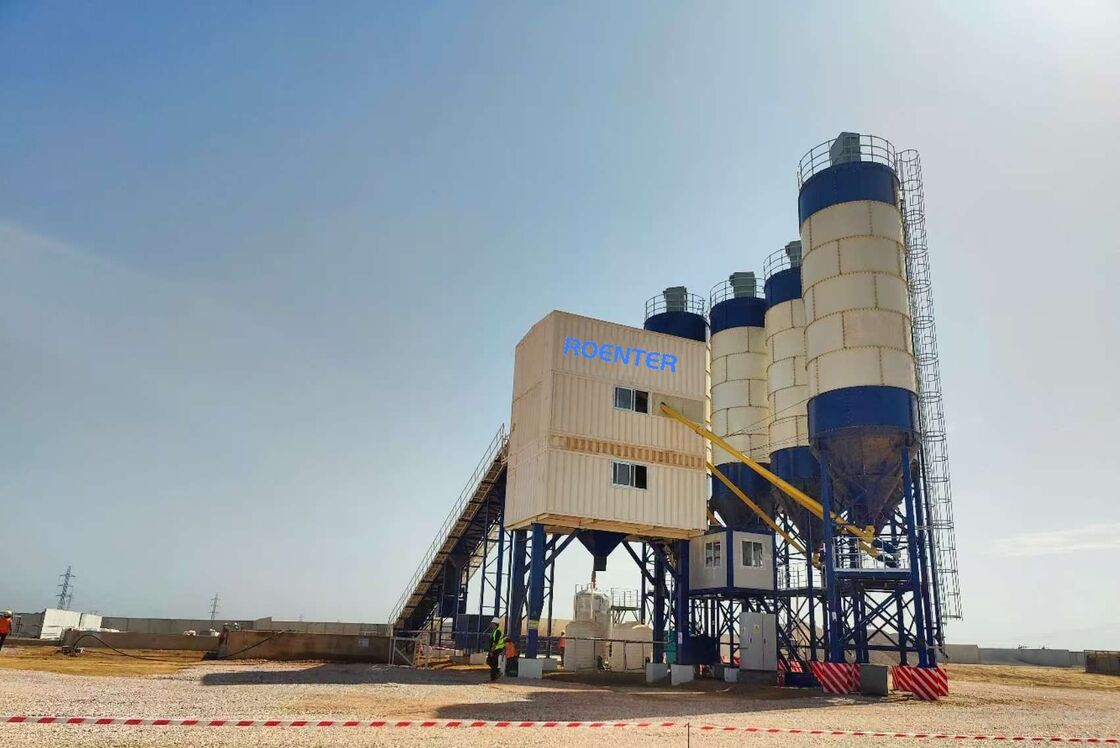

This high-efficiency concrete batch plant delivers stable, rapid mixing performance for all construction scenarios. Equipped with precise weighing systems, it ensures consistent concrete quality for building, road and bridge projects.
| Item | Sub-item | HZS060-5R | HZS090-5R | HZS120-5R |
| Theoretical Productivity | 60 m³/h | 90 m³/h | 120 m³/h | |
| Mixing Main Machine | Model | JS1000-3B | JS1500-3B | JS2000-3B |
| Driving Power(kW) | 2x18.5 | 2x30 | 2x37 | |
| Discharge Capacity(L) | 1000 | 1500 | 2000 | |
| Max. Aggregate Size (mm) | ≤60/80 | ≤60/80 | ≤60/80 | |
| Batching Machine | Bin Volume (m³) | 3x12 | 4x12 | 4x12 |
| Belt Conveyor Capacity | 200 t/h | 300 t/h | 400 t/h | |
| Weighing Range & Accuracy | Aggregate (kg) | 3×(1000±2%) | 4×(1500±2%) | 4×(2000±2%) |
| Cement (kg) | 500±1% | 800±1% | 1000±1% | |
| Fly Ash (kg) | 150±1% | 200±1% | 300±1% | |
| Mineral Powder (kg) | 150±1% | 200±1% | 300±1% | |
| Water (kg) | 200±1% | 300±1% | 400±1% | |
| Admixture (kg) | 20±1% | 30±1% | 40±1% | |
| Discharge Height | 4.2 m | 4.2 m | 4.2 m | |
| Total Power | 100 KW | 150 KW | 200 KW |
