Model Number:
3000 Mobile Component Machine
Contact Us

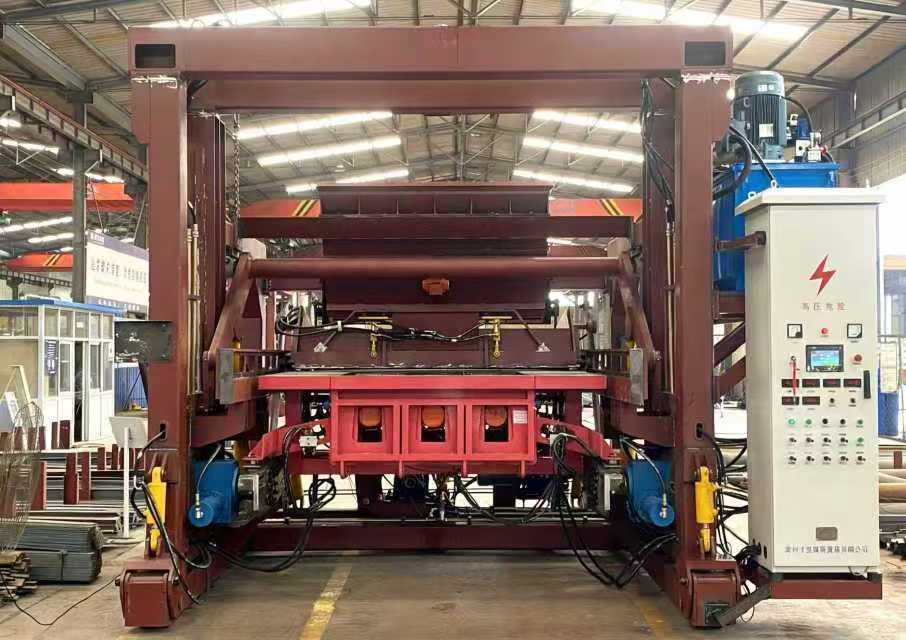

3000 Mobile Component Machine
| NO. | Name | Qty. | unit | Technical parameter |
| 1 | Host machine | 1 | set |
Dimensions: 6800*3520*4100mm Power supply voltage: AC380V, 50Hz Hopper volume: 2m2 Maximum component size range: 3000*2000*1300mm; Maximum component weight: 5 tons Mould flipping angle: 0-180 degrees Walking speed: 6m/min Walking motor power: 1.5KW x 2 Turning speed: 6m/min, 360-degree turning Turning motor power: 1.5KW Quality guarantee: 1-year warranty |
| 2 | Hydraulic pump station | 1 | set |
Hydraulic valve brand: YOULI Motor power: 22kw Brand: Wannan Oil tank volume: 250L Rated pressure: 14Mpa Flow rate: 96L/min Quality guarantee: 1-year warranty |
| 3 | Pneumatic and water systems | 1 | set |
Brand: DELIXI Power supply voltage: AC 220V, 50Hz Motor power: 2.2KW Air tank volume: 50L Water tank volume: 30L Pressure: 0.8MPa Quality guarantee: 1-year warranty |
| 4 |
electronic control system
|
1 | set |
Touchscreen: Kunlun Tongzhe PLC: Siemens AC contactor: Schneider Frequency converter: Jiasen or Reneng Quality guarantee: 1-year warranty |
