Place of Origin:
China
Model Number:
T01A120/A140
Contact Us

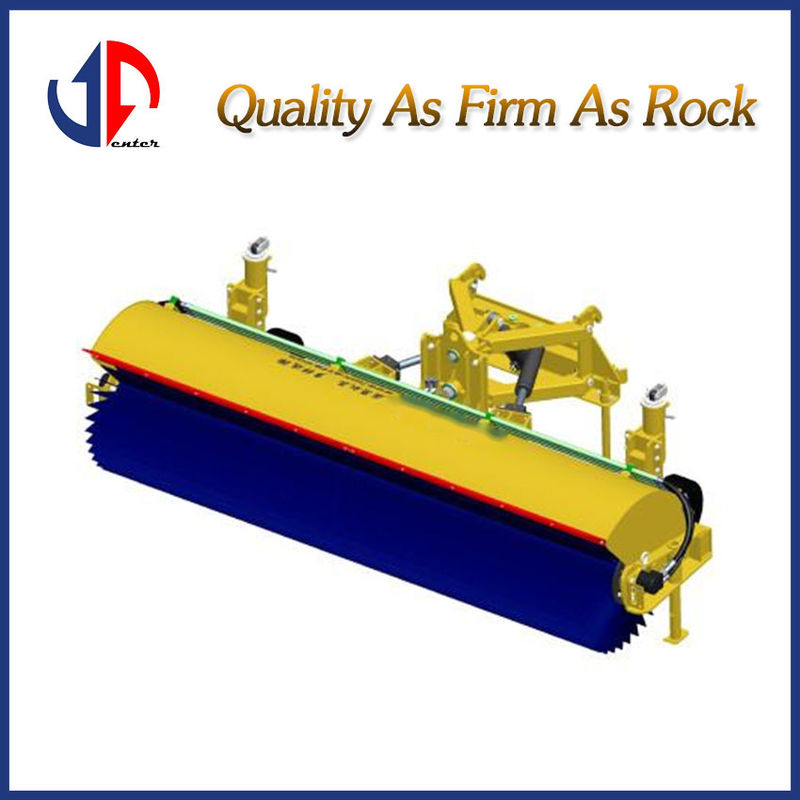

T01A120/A140
| Technical parameter | ||
| Model | T01A120 | T01A140 |
| Total length (mm) | 2000 | 2000 |
| Total width (mm) | 3362 | 3862 |
| Total height (mm) | 1077 | 1077 |
| Total weight(kg) | 1040 | 1100 |
| Cleaning width (mm) | 3000 | 3600 |
| Yaw angle (°) (Hydraulic steering) | ±30 | |
| Sweep width after 30°yaw (mm) | 2600 | 3200 |
| Brush roll diameter (mm) | Φ800 | |
| Maximum allowable pressure (Mpa) | 20 | |
| Working flow(L/Min) | 120-150 | 140-180 |
| Operating voltage(V) | DC24 | |
| Mounting type | (Trucks with a total mass of 14T and above) | |
Main Features:
This product can be used for snow removal operations of high-grade highways, urban roads, airports, squares, scenic spots, with easy installation, flexible use, high efficiency, reliable quality, superior performance and so on.
1. With natural loose snow as the main object of removal, front-mounted large diameter polypropylene, steel wire mixing brush roller, with wear resistance, elastic resistance to bending, no damage to the road surface and other advantages.
2. The rolling brush can swing around the transverse slope of the road, which can improve the snow removal effect, and make the rolling brush always maintain uniform contact with the road surface, wear is also very uniform, and improve the service life of the rolling brush.
3. Rolling brush using built-in motor, direct drive bearing seat support design, support wheel using solid tires, anywhere copying.
4. Both sides of the rolling brush are equipped with a brush shaft height adjustment handle.
After the brush seedling is worn, the brush shaft height can be adjusted by pressing down to improve the utilization rate of the brush seedling and extend the service life of the brush seedling. When the wear of the brush seedlings on both sides is uneven, the height of one side can also be adjusted to ensure the grounding effect of the brush seedlings as a whole, so as to ensure that the snow removal is cleaner and improve the snow removal efficiency.
5. The front roller brush is installed in the upper part of the snow shield device, which can prevent the snow fog formed by high-speed snow clearing from falling to the cab, affecting the driver's line of sight.
6. The hydraulic drive can achieve the left and right swing of the snow rolling brush, the swing Angle can be adjusted within the range of ±30°, in order to change the direction of snow.
7. The roller brush is quickly connected with the chassis of the car by the suspension connection frame, easy installation and disassembly, and the front roller brush can be quickly exchanged with the front snow shovel.
8. The controller placed in the cab can complete the lifting, descending and left and right deflection of the snow removal machine and the rolling brush rotation function. The controller keys and the operation handle are flexible and reliable, and the operation is convenient.
9. Independent hydraulic system can achieve lifting, lowering, deflection and other functions.
10. Optional lighting system to meet the needs of night work.
