JAM15P100I Snow Blower

JAM15P100I Snow Blower

Place of Origin:

China

Model Number:

JAM15P100I

Contact Us

Request A Quote
Product Details
Equipment:
Snowblower
Auger Diameter:
12-14 Inches
Chute Control:
Manual/Electric
Chute Material:
Steel/Plastic
Chute Rotation:
180-200 Degrees
Drive System:
Wheels/Tracks
Name:
Snow Blower Machine
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Bulk
Delivery Time
30 days
Payment Terms
L/C, D/A, D/P, T/T, PayPal
RELATED PRODUCTS
Contact Us
Product Description

JAM15P100I





Technical Parameters
Model JAM15P100I
Total length (mm) (Excluding pendants) 2140
Total width (mm) 2678
Total height (mm) 3480-3930
Total weight(kg) 4200
Snow removal height (mm) 1400
Impeller diameter (mm) φ1000
Working capacity(t/h) 2500

Maximum snow throwing distance

(m)

30
Barrel lift(mm) 450
Horizontal rotation angle( ° ) 300
Voltage(V) DC24
Engine power(kW) 194@2200rpm
Applicable area altitude(m) ≤4500
Adaptation host 5T and above loaders

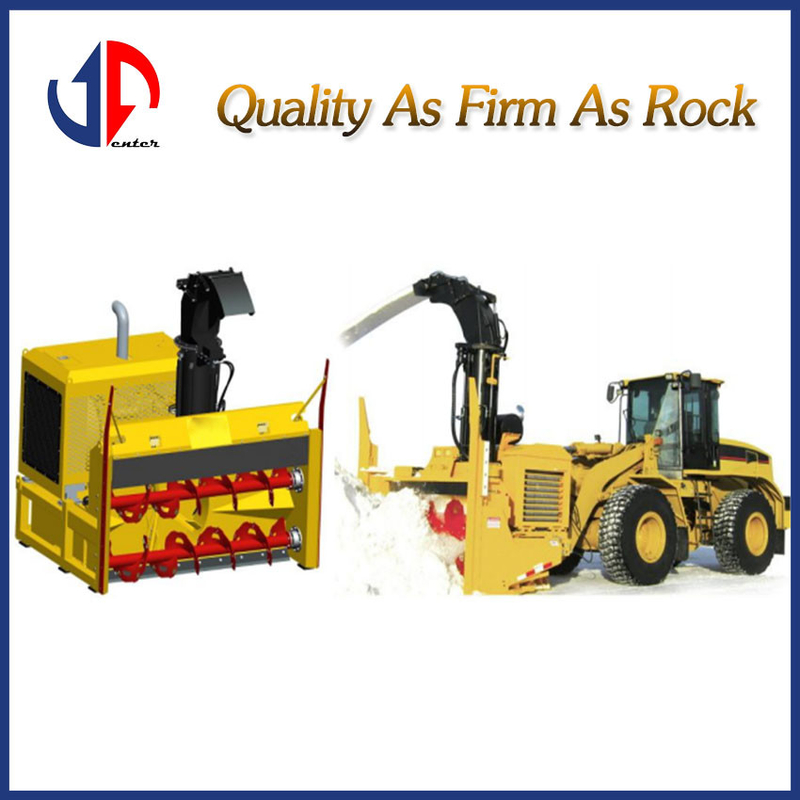

Product Performance Characteristics



1) Suitable for highway, airport, highway and other snow throwing operations, suitable for urban road snow loading operations.

2) The operation speed is fast, and it is the ideal snow clearing machinery to meet the requirements of rapid snow removal in the city.

3) Easy to install and disassemble, suitable for more than 50 forklifts (including 50).

4) Cummins, water-cooled, direct injection, turbocharged engine, meet China's non-road III stage emission grade, electronically controlled high pressure common rail technology, to provide powerful working power.

5) One key control engine clutch, snow throwing cylinder rotation, and snow cap swing, easy to operate.

6) The snow throwing machine can throw the snow up to 30 meters away, and the snow can be thrown to the required position by turning the streamlined snow throwing cylinder and adjusting the Angle of the snow lifting cap.

7) Snow throwing cylinder with lifting mechanism, to meet the loading requirements of various working conditions.

8) Twisted-pair dragon, fast operation speed, high snow clearing efficiency, blades with icebreaker teeth, can break the frozen snow.
