Place of Origin:
China
Model Number:
2 Axle
Contact Us

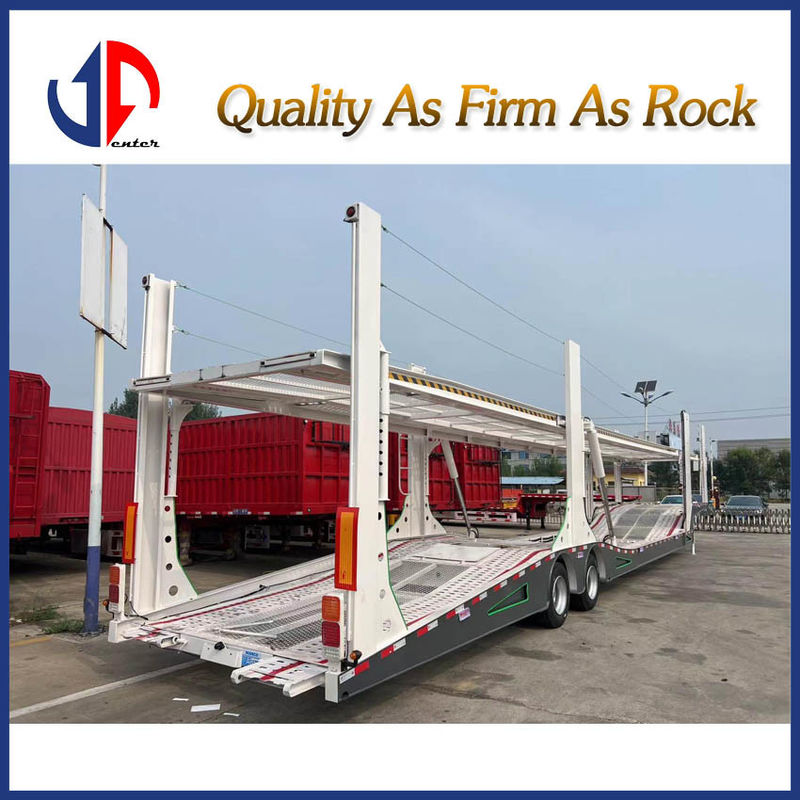

2 Axle Car Carrier Semi Trailer
|
Detail specification |
|
| Model | 2 Axle Car carrier semi trailer |
| Function | Carry 8 units cars |
| Dimension | |
| Overall Size (L×W×H)mm | 17100×2550×3700mm |
| Weight(KG) | |
| Tare weight | 6,000kg |
| Loading capacity | 28,000kg |
| G.V.W.R. | 34,000kg |
| Body details | |
| Frame | Design/welding technology |
| Main beam |
High strength steel Q345B. Top Flange 10 mm; Bottom Flange 10mm. Middle Flange 6mm |
| Side beam | Heavy duty 14# channel steel |
| Platform | Single deck, 2.5mm thick platform plate with holes |
| Hydraulic system | 4 Sets hydraulic system |
| Painting | The entire body is powder coated. Guarantee that the paint will not come off for more than 3 years of normal use. |
| Frame | |
| Axle | 2 American axles 11T, technical load capacity 11,000 kg master |
| Kingpin | JOST 2.00’’(50#) bolting king pin |
| Suspension | 2 sets air suspension |
| Landing gear | 28 ton two speed telescopic, manual operation landing legs. |
| Tire | Chengshan brand 235/75R 17.5, 9pcs |
| Steel wheel rim | 6.75R17.5, 8pcs |
| Brake system |
ABS, EBS Two units of reliable local brand standard air-connector. |
| LED light | Standard rear light, turn light. |
| Rear &Side Guard | Standard type |
| Security holes | Each hydraulic rod with 2 Security holes |
