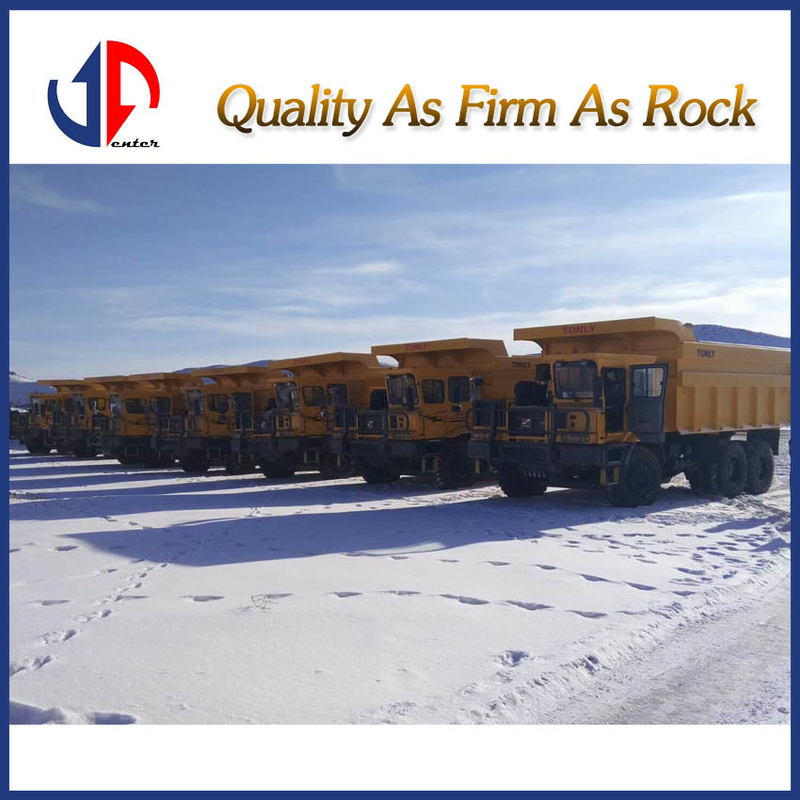

TL885 off-road Dump Truck

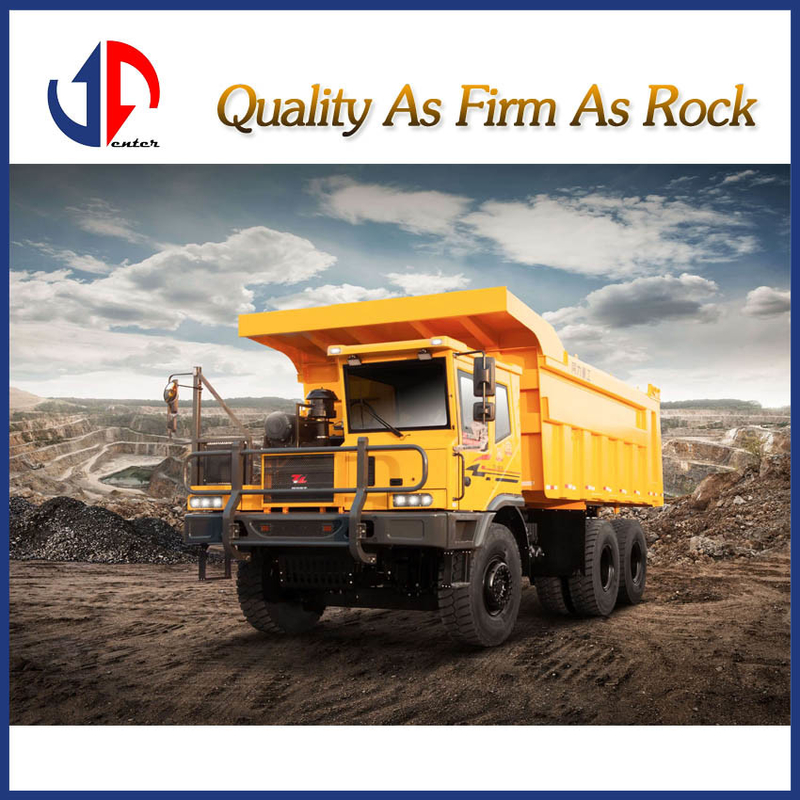

TL885A Mining Dump Truck

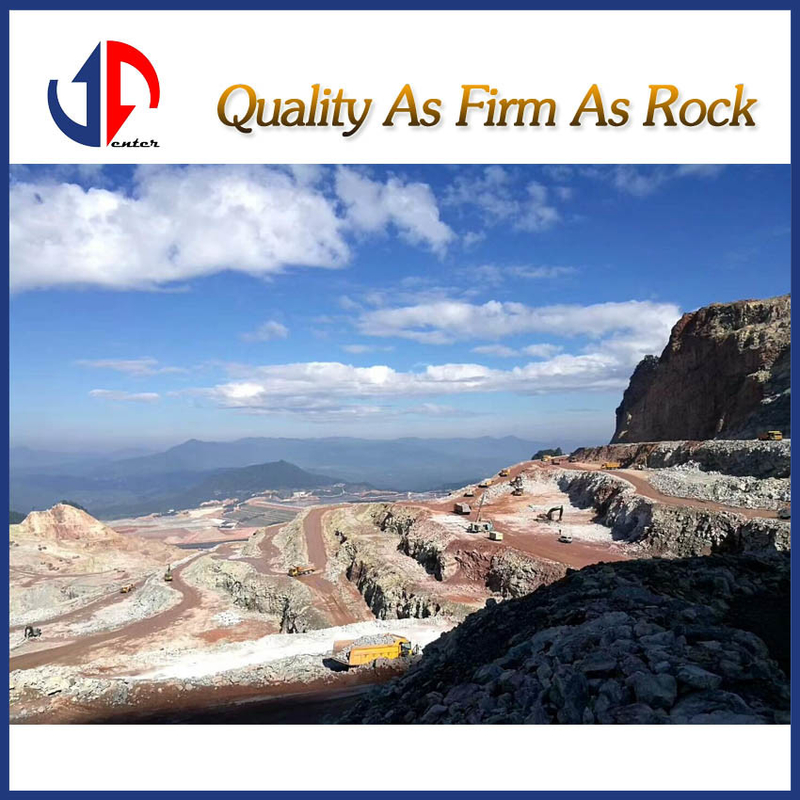

TL885A is our largest payload mining dump truck, with a load capacity that can exceed 70 tons. It is the first choice for large open-pit operations, providing high-efficiency transportation.
Product Features:
Increased Load Capacity: With a new upgraded axle, the truck boasts a remarkable load capacity, delivering high comprehensive transportation benefits.
Patented Flexible Structure Frame: TL885A incorporates core patented technology featuring a flexible structure frame. This design enhances shock absorption and attenuation, significantly reducing the failure rate of the truck chassis.
Hydraulic Steering System: The full hydraulic steering and emergency steering system contribute to lighter, more reliable, and safer operation.
This mining dump truck is engineered for optimal performance in large-scale open-pit environments, ensuring efficiency and reliability in transportation operations.
Technical Parameters
| Overall parameters | Model | TL885A |
| Brand | Tonly | |
| Drive mode | 6*4 | |
| GVW (t) | 105 | |
| Rated payload (t) | 70 | |
| Kerb weight (t) | 35 | |
| Dimensions (mm) | 9350*3750*4234 | |
| Wheelbase (mm) | 3775+1750 | |
| Wheel track (mm) | 2838/2626 | |
| Minimum ground clearance (mm) | 400 | |
| Minimum turning radius (m) | 11 | |
| Maximum height of bucket lift (mm) | 8320 | |
| Maximum angle of bucket lift (°) | 50 | |
| Loading height (mm) | 4234 | |
| Braking distance (m) | 17 | |
| Maximum climbing degree (％) | ≥32 | |
| Maximum speed (km/h) | 40 | |
| Engine | Model | WP13G530E310 |
| Manufacturer/Country | Weichai/China | |
| Power (hp/kw) | 530/390 | |
| Transmission | Model | 8DS240A |
| Manufacturer/Country | Fast/China | |
| Input torque (N•m) | 2400 | |
| Axle | Manufacturer/Country | Hande/China |
| Load/T | 25+40+40 | |
| Tires/Rims | Tire model | 16.00-25 |
| Rim size | 11.25/2.0-2.5 | |
| Container | Base plate material/thickness (mm) | NM400/16 |
| Rear plate material/thickness (mm) | NM400/12 | |
| Front plate material/thickness (mm) | T700/10 | |
| Side plate material/thickness (mm) | T700/10 | |
| Container volume (m³) | 36 | |
| Hydraulic system | Model | FC191 |
| Manufacturer/Country | HYVA/China | |
| Steering device | Fullu hydraulic steering | |
| Lifting time (s) | 27 | |
| Descent time (s) | 27 | |
| Weight distribution | Empty load | |
| Front axle (kg) | 15000 | |
| Rear axle (kg) | 20000 | |
| Total weight (50％fuel) (kg) | 35000 | |
| Loaded | ||
| Front axle (kg) | 25000 | |
| Rear axle (kg) | 80000 | |
| Total weight (kg) | 105000 | |
