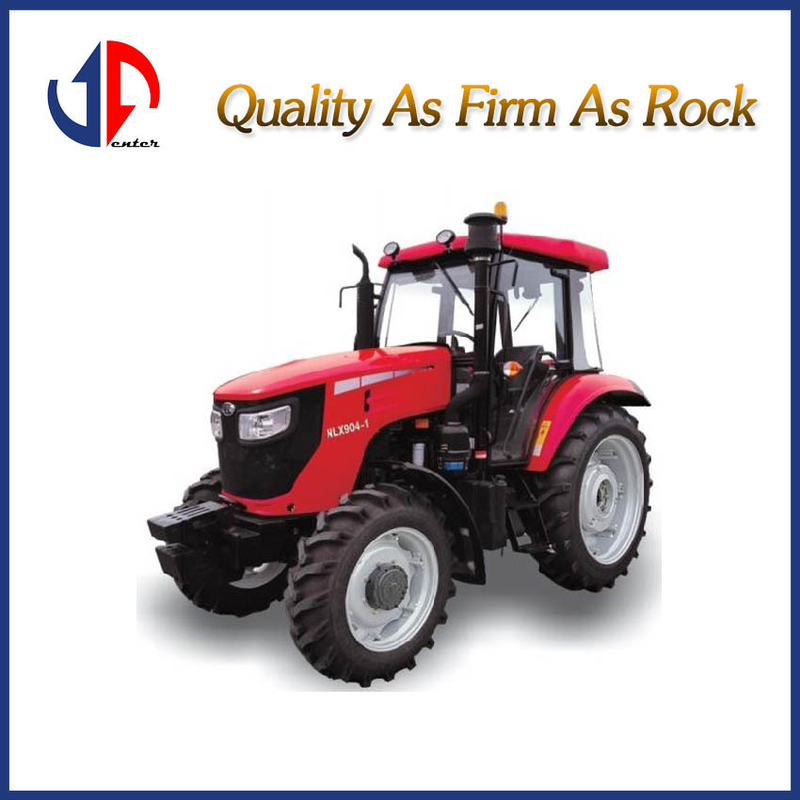

NLX904-1/NLX954-1/NLX1054-1/NLX1104-1
Main features
1. This series of tractors have excellent performance,1.4m wheel track and strong adaptability, it can not only plough and transport, but also spray and fertilize;
2. Four cylinder two-stage balanced diesel engine, lower vibration, strong power and low fuel consumption;
3. 12F+4R gears, wide speed range to meet the needs of various operations;
4. Independently operated dual-action clutch, driving and PTO to achieve separate control, operation efficiency is higher;
5. Hydrostatic steering, easy and flexible operation;
6. Hydraulic disc brake, labor-saving operation, high braking efficiency;
7. Fully enclosed cab,wide view, optional air conditioning and warm air;
8. Optional synchronizer shift, air brake device.
Specification
| Model | NLX904-1 | NLX954-1 | NLX1054-1 | NLX1104-1 |
| Engine type | 4 cylinder, naturally aspirated diesel engine | 4 cylinder, turbocharged diesel engine | ||
| Rated power kW (hp) | 66.1(90) | 70(95) | 77.2(105) | 81(110) |
| Engine speed (rpm) | 2200 | |||
| Clutch | Independent, dual action | |||
| Gears | 12F+4R(Option12F+12R or 24F+8R) | |||
| Speed range (km/h) | 2.2-35.7 | |||
| Brake type | Wet, disc | |||
| Rear PTO (rpm) | 540/1000 | |||
| Lifting force (Link joint)(KN) | ≥23 | |||
| Hydraulic output (set) | 2 or 3 | |||
| Overall dimensions (L*W*H)(mm) | 4450*1905*2755 | |||
| Wheel base (mm) | 2314 | |||
| Ground clearance (mm) | 430 | |||
| Wheel track (F/R)(mm) | 1430-1850/1400-1700 | |||
| Min. turning radius (m) | 5.6±0.3 | |||
| Tyre (F/R) | 11.2-24/15.5-38 | |||
| Min. operating mass (kg) | 3600 | |||
