Place of Origin:
China
Brand Name:
Changfa
Model Number:
CFD504M
Contact Us

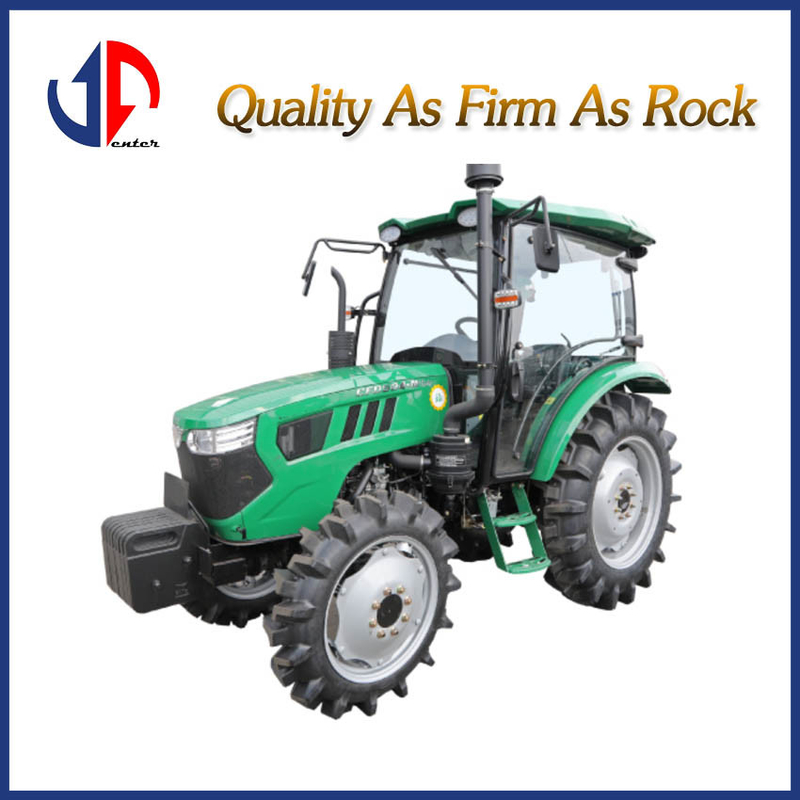

CFD504M
| CFD504M(50HP, four-wheel drive) | ||
| Model | unit | CFD504M |
| Engine model | Changfa 495 | |
| Engine type | in-line, water flow, four-stroke, direct injection | |
| Engine rated power | kW | 36.8 |
| Rated speed | r/min | 2400 |
| Dimensions | mm | 4061*1831*2560 |
| Axial Track | mm | 2001 |
| Front wheelbase | mm | 1300-1560 |
| Rear wheelbase | mm | 1218-1600 |
| Minimum ground clearance | mm | 373 |
| Calibrated traction | kN | 14 |
| Tire specifications(front) | 8.3-20 flat | |
| Tire specifications(rear) | 12.4-28 flat | |
| Minimum weight | kg | 2150 |
| Clutch | Dry type, single chip, often bonded, double acting | |
| Gearbox | Component type, collar shift 16+16 | |
| Brake system | Oil bath,double disc type,mechanical operation | |
| Driving speed | km/h | Forward speed: 3.03-40 reverse speed: 2.71-35.9 |
| Maximum lifting force at 610mm behind the lower suspension point | kN | 14.5 |
| PTO shaft speed | r/min | 540/1000 |
