717H MOTOR GRADER

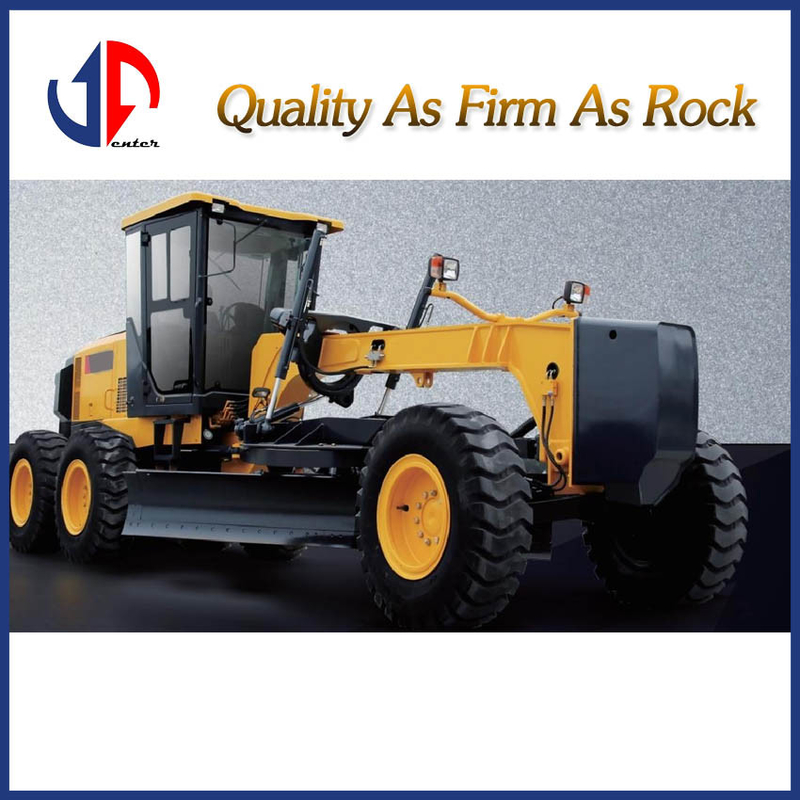

717H MOTOR GRADER

Place of Origin:

China

Model Number:

717H

Contact Us

Request A Quote
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Bulk
Delivery Time
30 days
Payment Terms
L/C, D/A, D/P, T/T, PayPal
RELATED PRODUCTS
Contact Us
Product Description

717H SPECIFICATION



ENGINE
 717H
Mode6BTA5.9-C180
TypeVertical,in-line, water-cooled, 4 strokes
Aspirationturbocharged after cooling
No.of cylinders6
Bore102 mm
Stroke120 mm
Piston displacement5.9L
Horsepower-Gross132kW/2,200rpm
Maximum torque750Nm/1,300rpm
Torque rise30%
Air cleaneDry type
Electrical28V,55A
Battery12V*2;900cca
TRANSMISSION AND TORQUE CONVERTER
 717H
Speed (at rated engine speed)Forward /Reverse (km/h)
1st6.5/6.5
2nd11.4/14.6
3rd14.6/30
4th24.8
5th30
6th49.2
TANDEM DRIVE
 717H
Oscillating welded box section614*225 mm
Side wall thicknessInner
 Outer
Wheel axle spacing1,535.4 mm
Tandem oscillation130
FRONT AXLE
 717H
TypeSolid bar construction welded steel sections
Ground clearance at pivot610 mm
Wheel lean angle, right or left±17°
Oscillation, total32°
