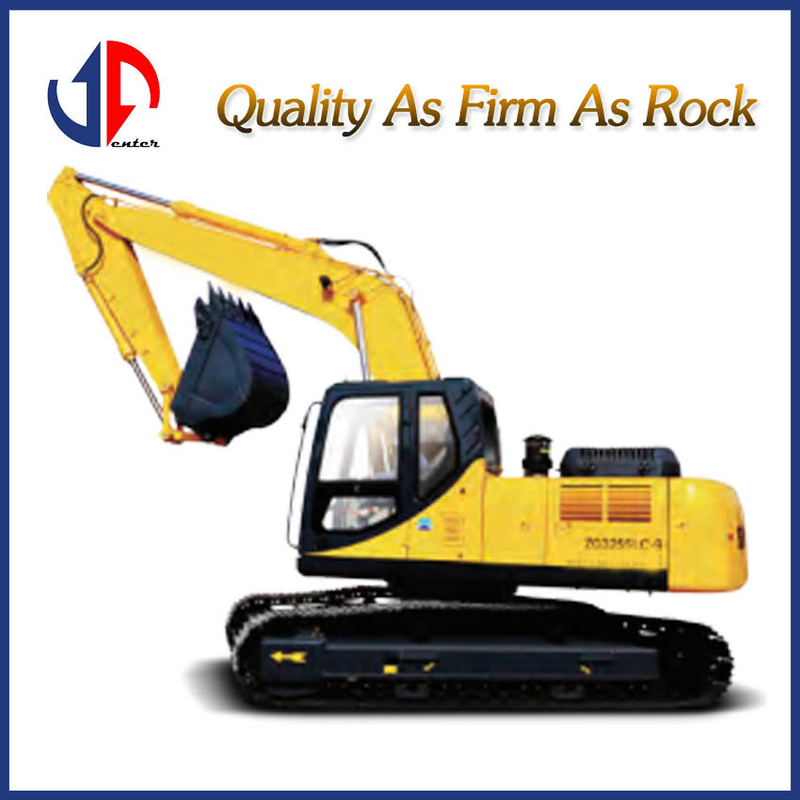

Excavator ZG3255LC-9C

Excavator ZG3255LC-9C

Place of Origin:

China

Model Number:

ZG3255LC-9C

Contact Us

Request A Quote
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Bulk
Delivery Time
30 days
Payment Terms
L/C, D/A, D/P, T/T, PayPal
RELATED PRODUCTS
Contact Us
Product Description

ZG3255LC-9C



Cummins EFI engine (in-line with the three-stage emission regulations) has strong power, high efficiency, energy saving, reliability and durability; Advanced negative flow hydraulic system, comfortable operation, high working efficiency and excellent cost performance; Full power control, four power modes adapt to different working conditions; Reliable and accurate fuel injection system, real-time control of fuel injection quantity, making fully combustion and higher fuel efficiency ; Three-dimensional modeling and finite element analysis technology ensure the reliability and stability of the finished components.



Specification

Engine



  ZG3255LC-9C
Model Cummins 6BTAA5.9-C178
Type 6-cylinder in-line,
four-stroke turbocharger
Emission Tier Ⅱ
Displacement L 5.883
Rated power 133KW(180PS)@2000rpm
Max. torque 708N.m@1500rpm



Performance



Max. traction KN 204
Travelling speed (H/L) Km/hr 5.8/3.2
Swing speed rpm 10.5
Gradeability Degree(%) 35(70%)
Ground pressure Kg f/cm² 0.45



Hydraulic system



Main pump:
Model K3V112DT-1X8R-9NE4-2V
Type Axial variable piston pump

Displacement

22×115 cc/rev

Max. Pressure 350 kg f/cm2
Rated flow 2×230 L/min
Main valve
Model KMX15RA/B45067
Type Negative flow
Operating type Hydraulic Pilot Control
LS relief valve pressure 34.3MPa
Overload relief valve pressure 37MPa



Rotary motor



  ZG3255LC-9C
Model F5X180CHB-10A-01A/265-149-FRG14D
Type Axial Fixed Displacement Piston Motor
Displacement 169.4cc/rev
Rated pressure 230 kgf/cm2
Brake system Multi-piece wet negative pressure type
Brake torque 967 N•m
Swing speed 10.5 rpm



Walking motor



Model

TM40VD-A-92/169-1

Type Axial Variable Displacement Piston Motor
Operating pressure 350 kg f/cm2
Brake system Multi-piece wet negative pressure type
Brake torque 49.3 kg f.m
Displacements(Max./Min) 176/95.3 cc/rev
Rated flow 230 L/min
