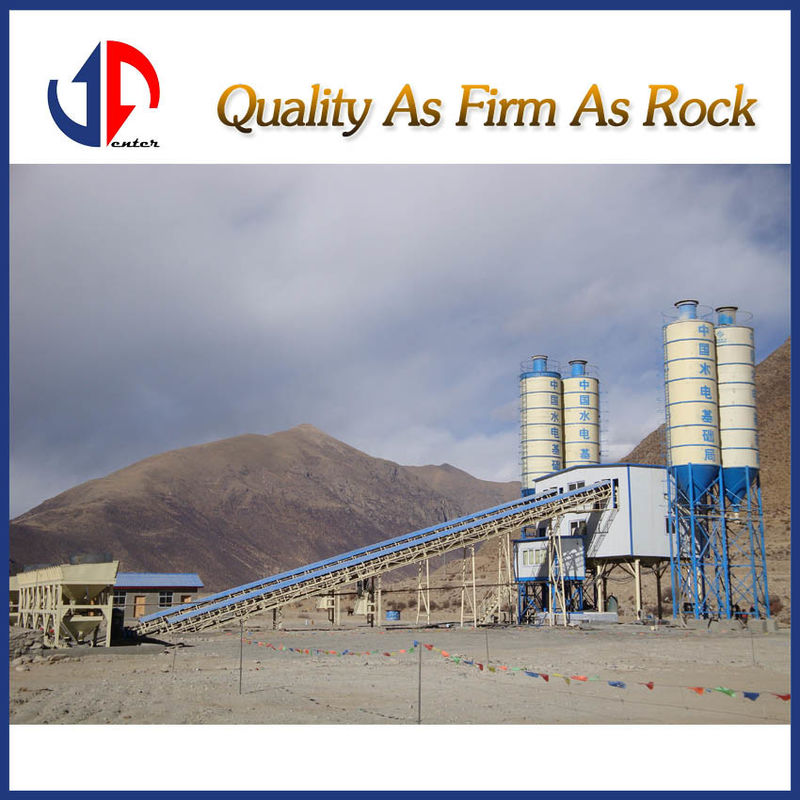

Concrete Mixing Plant HZS120

Concrete Mixing Plant HZS120

Place of Origin:

China

Model Number:

HZS120

Contact Us

Request A Quote
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Bulk
Delivery Time
30 days
Payment Terms
L/C, D/A, D/P, T/T, PayPal
RELATED PRODUCTS
Contact Us
Product Description

Whole station section

Model HZS120
  Theoretical productivity(m³/h) 120
  Standard discharge height(m) 4
  Working cycle time(s) 60
  Overall dimension(mm)(L*W*H) 55885*20200*2160
  Total installed capacity(kW) 210
Mixer section Model JS2000
Batcher section Model PLD3200
  Hopper capacity m³ 18

Pneumatic system

Air compressor model number 1.8-7
  Rated displacement(m³/min) 1.67
  Rated exhaust pressure(MPa) 0.8
  Motor power(kW) 15

Weighing system

Accuracy range of sand and stone measurement(kg)Precision ±2%
  Precision range of cement measurement(kg)Precision ±1%
  Water measurement accuracy range(kg)Precision ±1%
  Additive measurement accuracy range(kg)Precision ±1%

Matching screw

Matching screw type(m) LSY2739
  Motor power(kW) 15
  SETS 4
