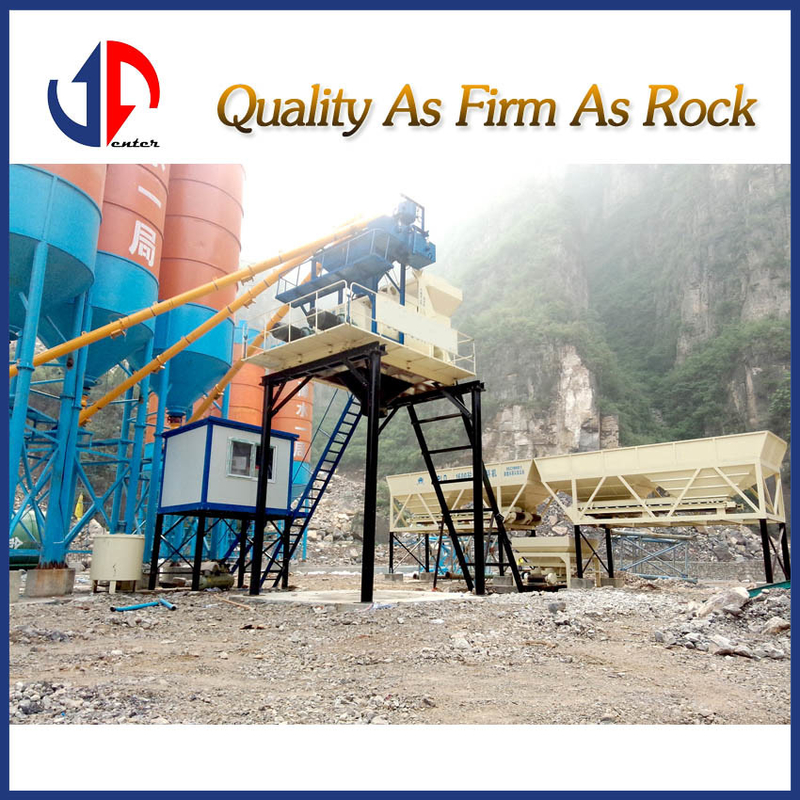

Concrete Mixing Plant HZS75

Concrete Mixing Plant HZS75

Place of Origin:

China

Model Number:

HZS75

Contact Us

Request A Quote
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Bulk
Delivery Time
30 days
Payment Terms
L/C, D/A, D/P, T/T, PayPal
RELATED PRODUCTS
Contact Us
Product Description

Whole station section

Model HZS75
  Theoretical productivity(m³/h) 75
  Standard discharge height(m) 2.7-3.8
  Working cycle time(s) 72
  Overall dimension(mm)(L*W*H) 15950*18840*17245
  Total installed capacity(kW) 120
Mixer section Model JS1500
Batcher section Model PLD2400
  Hopper capacity m³ 15

Pneumatic system

Air compressor model number 1.0-7
  Rated displacement(m³/min) 1.85
  Rated exhaust pressure(mpa) 0.8
  Motor power(kW) 11

Weighing system

Accuracy range of sand and stone measurement(kg)Precision ±2%
  Precision range of cement measurement(kg)Precision ±1%
  Water measurement accuracy range(kg)Precision ±1%
  Additive measurement accuracy range(kg)Precision ±1%

Matching screw

Matching screw type(m) LSY273-9
  Motor power(kW) 15
  SETS 4
