Emulsified Asphalt Wet Wheel Abrasion Tester YT-1

Emulsified Asphalt Wet Wheel Abrasion Tester YT-1

Place of Origin:

China

Model Number:

YT-1

Contact Us

Request A Quote
Product Details
Equipment:
Abrasion Tester
Abrasion Angle:
90°
Abrasion Distance:
50mm
Abrasion Force:
50N
Abrasion Method:
Wet Wheel Abrasion
Abrasion Time:
1min
Abrasion Time Setting:
1min
Dimension:
400×400×400mm
Model:
WWA-50
Power Supply:
AC220V/50Hz
Product Name:
Emulsified Asphalt Wet Wheel Abrasion Tester
Sample Size:
50mm
Sample Thickness:
2-4mm
Weight:
50kg
Wheel Diameter:
50mm
Wheel Load:
50N
Wheel Speed:
20r/min
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Bulk
Delivery Time
30 days
Payment Terms
L/C, D/A, D/P, T/T, PayPal
RELATED PRODUCTS
Contact Us
Product Description

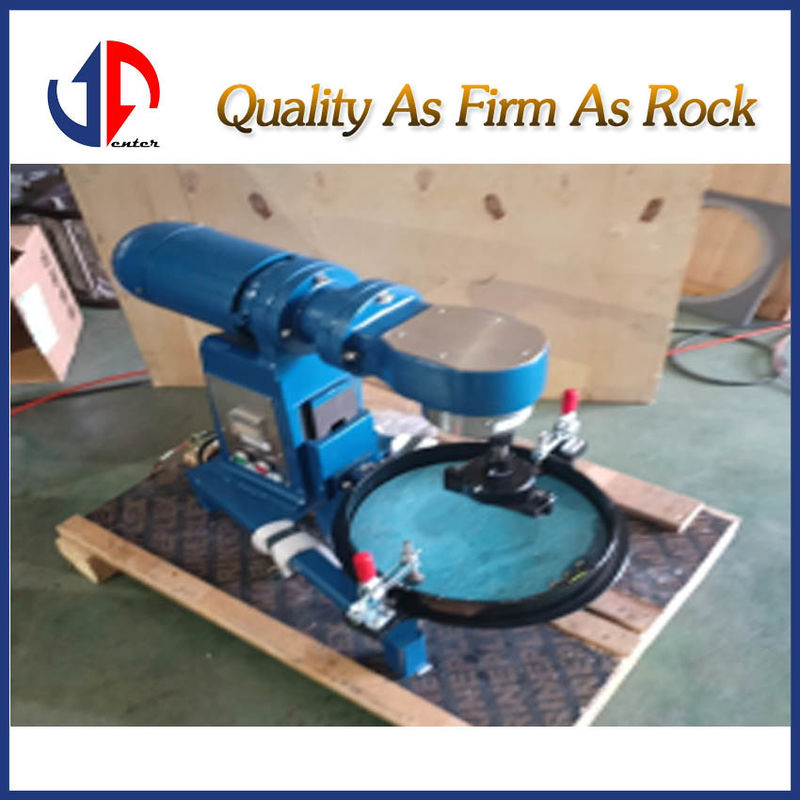

Emulsified Asphalt Wet Wheel Abrasion Tester



The amount of asphalt in emulsified asphalt slurry mixture is designed in the ratio. Important parameters, too little asphalt, slurry sealing layer will be loose, too much asphalt, the road will be wrapped, and also waste asphalt material. Wet-wheel abrasion tester can be used to determine the sealing mixture of emulsified asphalt slurry with load wheel test. Optimum asphalt dosage. This test is used to determine the slurry mixture. Small amount of asphalt, but also used to test the slurry mixture after forming wear properties.

The wet-wheel wear test is to place the molded slurry mixture specimen in water according to the specified molding method, and grind the head with the wet-wheel wear tester for 5min to measure the wear loss. The wet-wheel wear loss is expressed as g/㎡.



MACHINE:Emulsified asphalt wet wheel abrasion tester

MODEL:YT-1



Technical Parameters



 Wearing disc size: disc diameter φ330±1㎜, depth 50±1㎜
 Template: outer diameter ¢300mm, inner diameter ¢280mm
 Weight of wear head: 2.27±0.001kg
 Rubber tube: length 127㎜, hardness 60HA
 Grinding head speed: revolution 61 rpm, rotation 140 rpm
 Digital time counter: 0-99 hours and 99 minutes can be set



Configuration List



Host 1
 1 sample plate
 One plastic template Φ280
 3 rubber tubes
 One hexagonal wrench
 Scraper 1 piece
