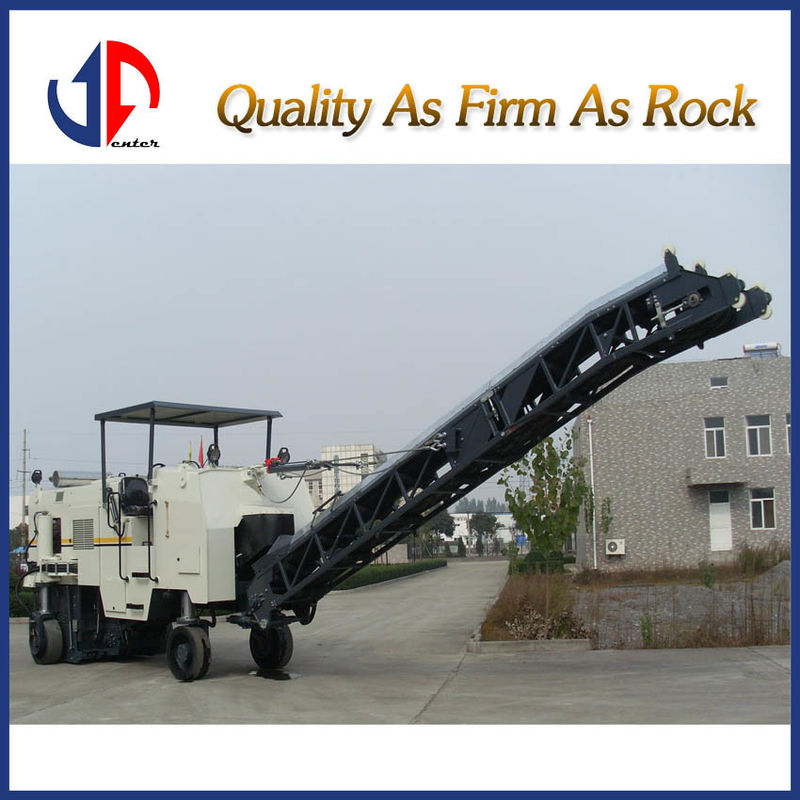

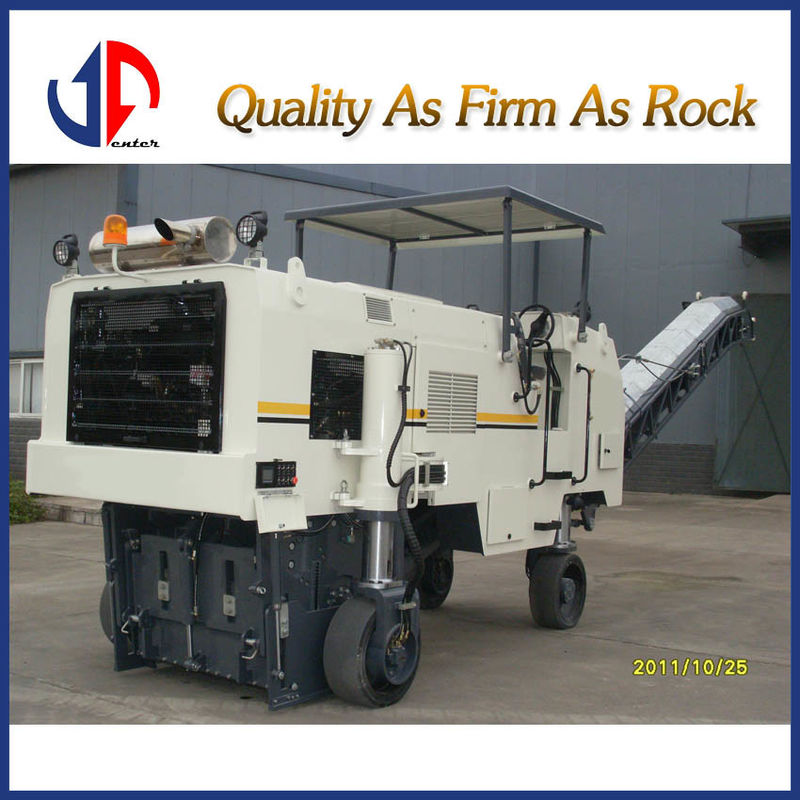

Wheel Type Milling Machines
| Items | Unit | 1.2m |
| Milling width | mm | 1200 |
| Milling depth | mm | 0～200 |
| Space of tools | mm | 15 |
| Numbers of tools | 102 | |
| Drum diameter with tools | mm | 900 |
| Engine | Yuchai Diesel | |
| Engine Type | YCA07280-T300 | |
| Cooling system | Water | |
| Number of cylinders | 6 | |
| Engine output | kW/Hp | |
| Engine speed | rpm | 2000 |
| Travel speed | km/h | 0～6.5 |
| Operation speed | m/min | 0～35 |
| Wheel size(D×B) | mm | 660×250 |
| Operation Weight | kg | 18000 |
| Shipping Weight | 16000 | |
| Fuel tank | l | 600 |
| Hydraulic tank | l | 200 |
| Water tank | l | 1200 |
| Voltage | V | 24 |
| Control system | CAN_bus system | |
| Conveyor belt width | mm | 600 |
| Discharge height | mm | 4200 |
| Conveyor capacity | m3/h | 170 |
| Dimensions of overall(L×W×H) | 11000×2370×3175 | |
| Dimensions of machine(L×W×H) | 5500×2370×3175 | |
| Dimensions of conveyor(L×W×H) | 8100×950×680 |
