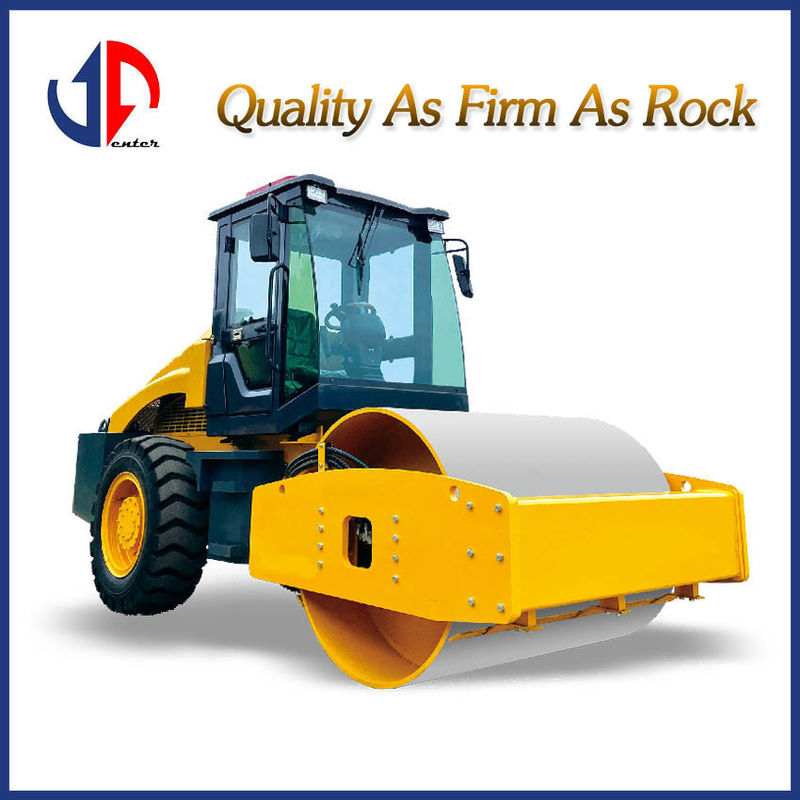

Hydraulic Single Drum Vibratory Roller LSS210H
LSS210H is a 10 ton full hydraulic vibration roller with single steel wheel,Heavy duty vibratory rollers are suitable for compaction of non-cohesive materials such as gravel, crushed stone, sand-macadam mixture, sandy soil and rock filling etc. on base course, sub-base and embankment fill construction etc., which are ideal equipment for high-class highway, railway, airport, harbors, dams and large-scale industrial ground etc.
Hydraulic travel drive, hydraulic vibration and articulated steering and the whole roller with optimal function/worth ratio and reliable performance.
To adopt YUNNEI YN35CEF4 engine, satisfies the requirement of GUO Ⅲ emission, low fuel consumption, performance is good.apply to the temperature - 10 ℃ above altitude 2000 m below the environment.
Technological Parameter
| Model | LSS210H | |
| Operating mass | kg | 9500 |
| Static linear load | N/cm | 245 |
| Vibrating frequency | Hz | 45 |
| Amplitude | mm | 0.7 |
| Centrifugal force | KN | 150 |
| Gradeability | % | 30 |
| Min.turning radius | mm | 5700 |
| Max.travel speed | km/h | 12.5 |
| Drum width*diameter | mm | 1800*1320 |
| Diesel model | YN35CEF4 | |
| Diesel power | kW | 70 |
| Diesel rotational speed | r/min | 2200 |
| Overall dimensions | mm | 5260×1970×2730 |
