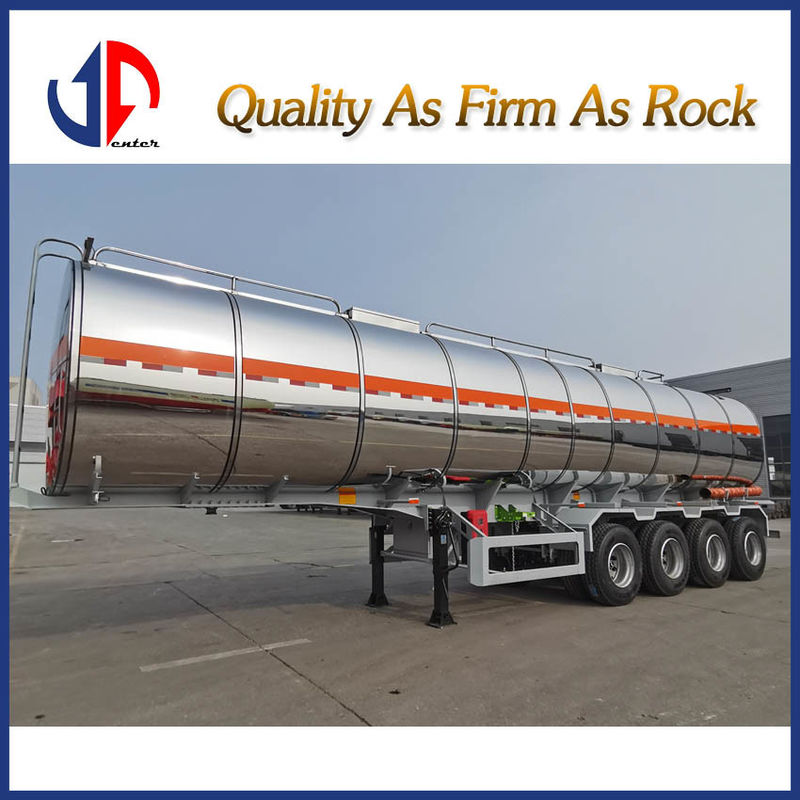

Three Axle Asphalt Tank Semi-Trailer Specifications
| Volume | Approx 30000Liters 30m³/35m³/40m³/45m³ |
| Dimension(mm) | 10500x2500x3800mm Reference) |
| Tare weight | 10300kg (Reference) |
| Tank body | Thickness 5mm Q345 Carbon steel |
| Front/Rear end plate | Thickness 6mm Q345 Carbon steel |
| Swash plate | Thickness 4mm Q345 Carbon steel |
| Compartment | 1units |
| Manhole cover | Diameter:500mm; Material:Q345; Number:2pcs |
| Quick-change connector | Diameter:4 inch; Material:standard ; |
| Heating pipe | 6pcs |
| Baiting valve | 6inch |
| Insulating layer | 50mm Thickness Glass fiber (Stainless steel materials) |
| Inflamer | Liyalu Brand with Electric control cabinet and 160L OIL TANKER |
| Cat walk | Standard |
| Axle | FUWA Brand 13T*3axles |
| Suspension | America Mechanical suspension |
| Leaf spring | Leaf spring 10pcs*90*13mm* |
| Tyre | 12R22.5 Triangle Tyre *12pcs |
| Wheel rim | 9.9-22.5 steel wheel rim *12pcs |
| Kingpin | 3.5’’bolt-in king pin China famous JOST brand |
| Landing gear | 28T Two-speed, manual operating ,heavy duty landing gear JOST brand |
| Braking system | WABCO RE6 Relay Emergency Valve.T30/30 spring brake chamber:40L air tanks |
| ABS | With ABS KEMI 4S/2M |
| Electrical | Voltage 24V, Receptacle 7 ways (7 wire harness), Side marker lamp LED type |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint. Wax spray |
| Accessories | One tool box, one spare tire carrier,fire extinguisher, Other factory’s standard |
