Place of Origin:
China
Brand Name:
Shantui
Model Number:
WBZ500-3B
Contact Us

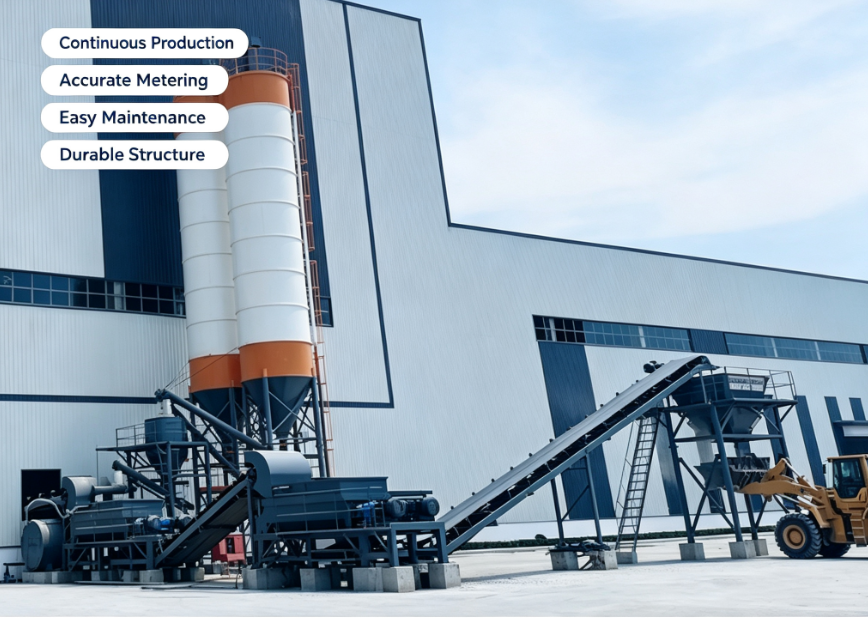

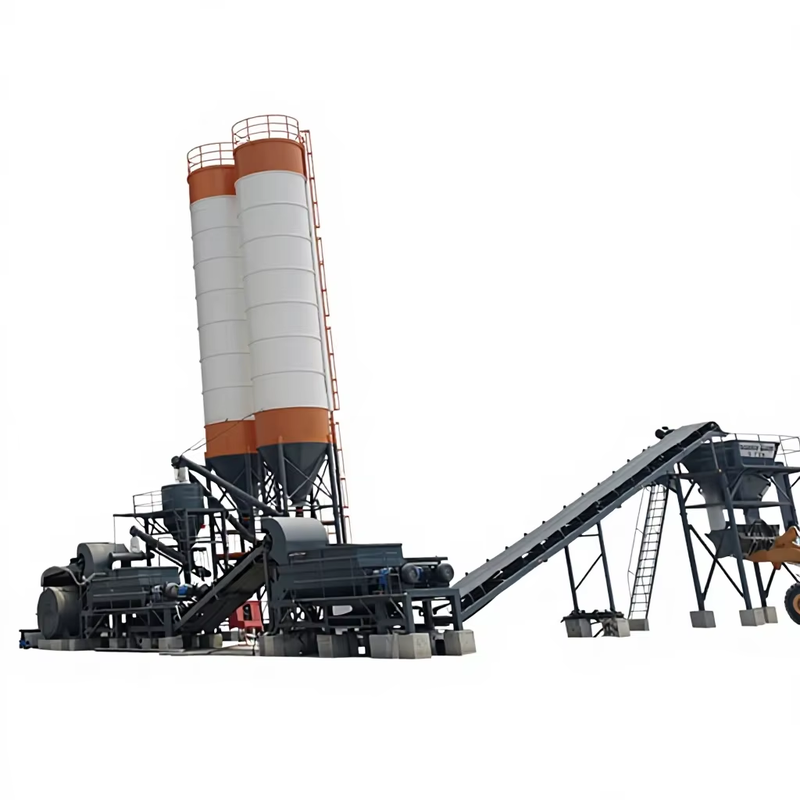

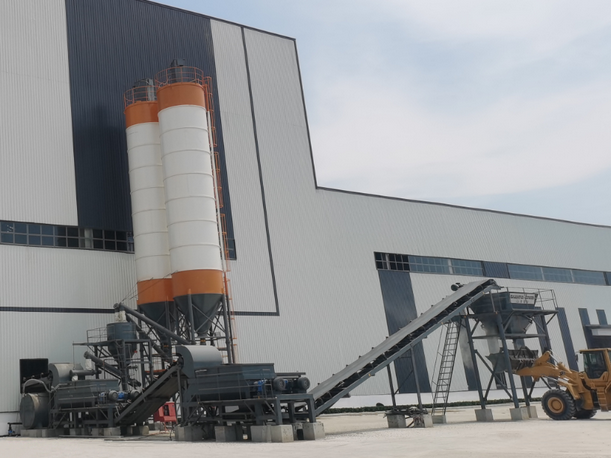

Designed for high-efficiency roadbase construction, the WBZ500-3B delivers a rated output of 500 t/h with superior metering accuracy (Aggregate ±2%, Cement ±1%, Water ±1%). It features a liner-free mixing design that drastically reduces maintenance costs and simplifies daily cleaning. The modular structure supports rapid on-site assembly and easy relocation, making it ideal for contractors handling multiple projects. Equipped with electronic weighing, frequency conversion control, and a secondary powder measurement system, it ensures consistent material ratios and excellent mixing homogeneity. Powered by a 2×30 kW twin-shaft mixer and supported by a 4×12 m³ aggregate bin system, this plant guarantees stable performance for highway, railway, and airport pavement projects.
| Model | WBZ500-3B |
| Rated Productivity (t/h) | 500 |
| Mixing host | —— |
| Stirring power (kW) | 2X30 |
| Aggregate particle size (mm) | ≤50 |
| Aggregate bin volume (m³) | 4X12 |
| Belt conveyor capacity (t/h) | 500 |
| aggregate | ±2% |
| cement | ±1% |
| water | ±1% |
| Total power (kW) | 137 |
| Discharge height (m) | 3.6 |
